Price range: £520.68 through £891.64

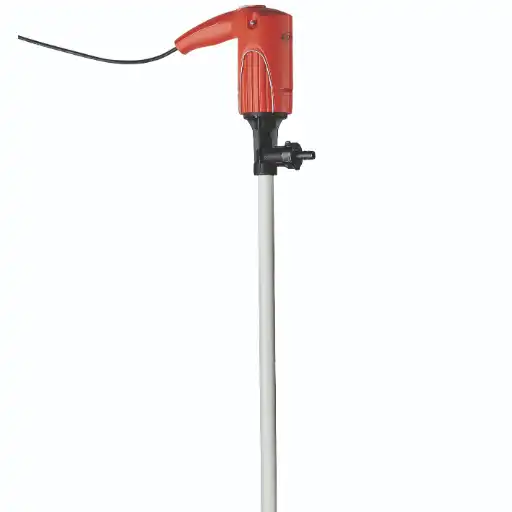

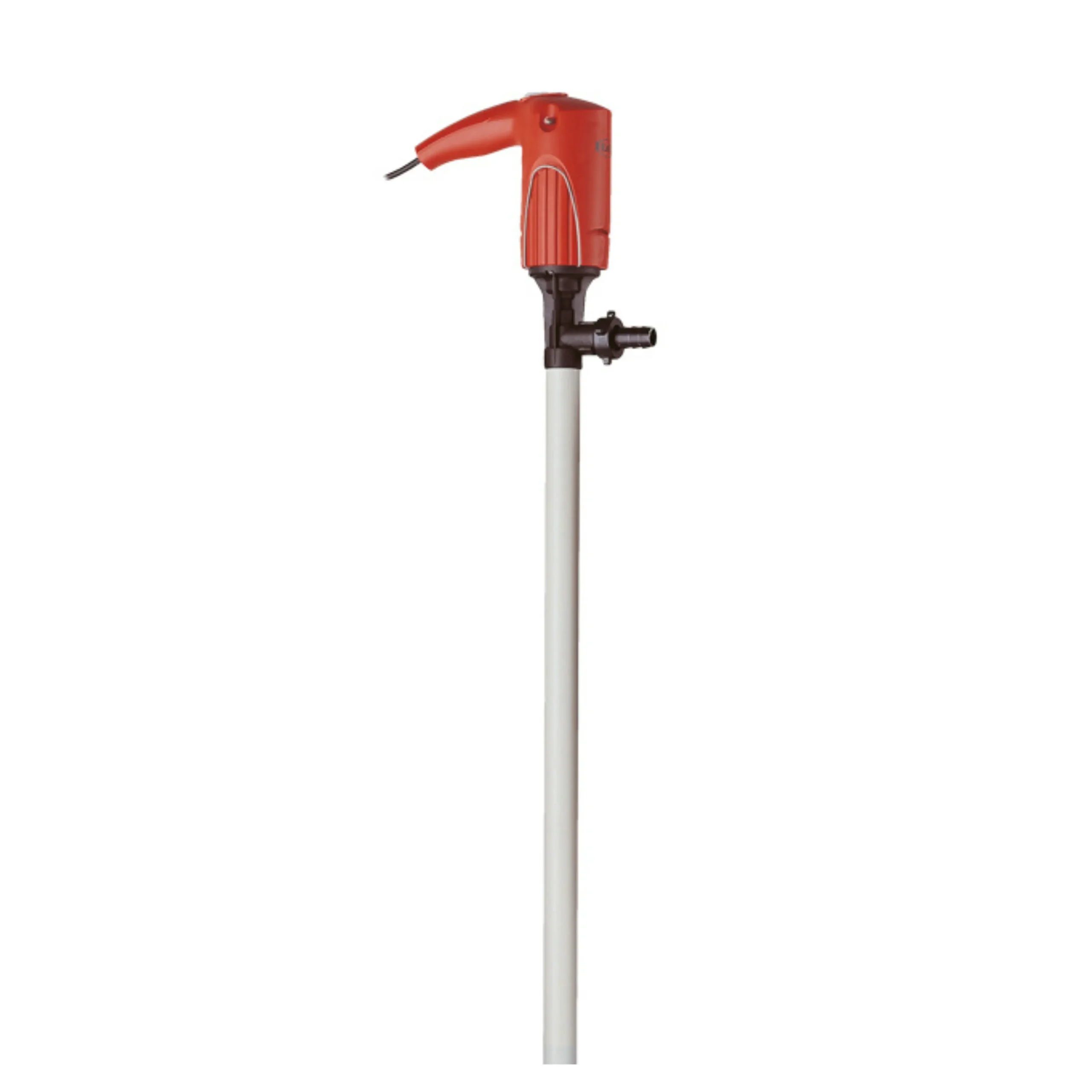

The Juniorflux F 314 sealless 25 litre barrel pump is a highly portable pump, primarily used for emptying smaller containers. It provides plant operatives with a safe, reliable method of transferring a wide range of chemicals.
Category | Details |
|---|---|
| Pump type | F 314 Juniorflux, centrifugal, seal‑less barrel pump |
| Outer tube material | Polypropylene (PP); PVDF; Stainless Steel 316 Ti |
| Driveshaft | Hastelloy C (PP & PVDF pumps); 316 Ti (Stainless steel pumps) |
| Inner tube system | Integrated with unique Flux spiral shaft bearing |
| Impeller | ETFE axial (chemical‑resistant) |
| Bearing material | PTFE / Carbon composite |
| O‑rings | FKM (vapour seal only) |
| Immersion lengths | 500 mm; 700 mm (small containers & hobbocks); 1000 mm (200–220 L barrels/drums) |
| Outer tube diameter | 25 mm; 28 mm; 32 mm* (depending on pump length & material) |
| Outlet connection | G 1 A (PP & PVDF pumps); G 3/4 A (Stainless steel pumps) |
| Motor type | FEM 3070 brushed commutator motor with two‑stage speed control |
| Power supply | 230 V or 110 V (50–60 Hz) |
| Ingress protection | IP 24 |
| Power rating | 230 W |
| Duty cycle | S1 continuous duty |
| Housing type | Single‑walled, internally ventilated, double‑insulated (Class II) |
| Housing material | Polyamide |
| Motor weight | 1.5 kg |
| Max ambient temperature | –20°C to +40°C |
| Cable length | 5 m |
| Plug type | UK 3‑pin adaptor included with 230 V motor |
| Overload protection | Integrated cut‑out |
| Certifications | UKCA; CE; VDE‑GS |
| Total weight (pump + motor) | 1.8 – 3.2 kg |
| Max flow rate | Approx. 40–57 L/min¹ (depending on diameter & material) |
| Max discharge pressure | Approx. 8.5 mwc¹ |
| Maximum liquid temperature | 45°C (PP); 60°C (Stainless steel & PVDF) |
| Max density | Approx. 1.3 g/cm³ (continuous use) |
| Max viscosity | Approx. 250 mPas (continuous use) |
| Dry run limitations | Suitable for limited dry‑running |
| Solids handling | Not recommended for large quantities of solids (use F 310 for solids) |
| Notes | ¹Measured with water at 20°C in open‑flow conditions. Hose connection not included. |
*Check material compatibility before use
**For dispensing smaller volumes only. Subject to use of enclosed, IP 44 double-walled battery motor.
Furthermore, see our list of media examples suitable for the JuniorFlux, here.
