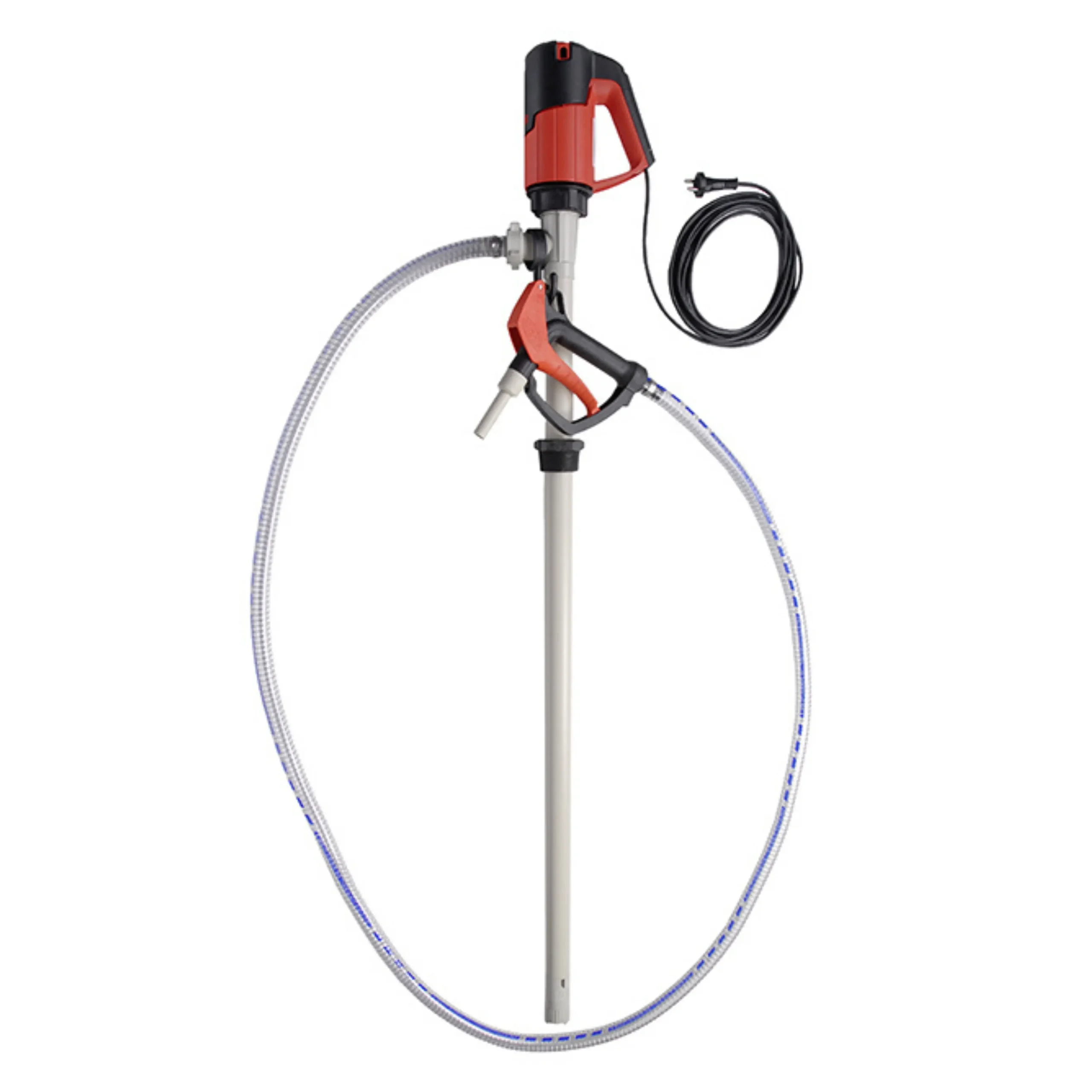

Flux Pumps F 424 AdBlue IBC Pump Kit | Seal-Less Design

• It is engineered for the safe, precise transfer of AdBlue®, DEF, brake fluid, coolant, glycol and other chemicals.
• Furthermore, this seal-less pump handles demanding, high-flow applications.
• It features a 6 mm stainless steel driveshaft and an ETFE semi-axial impeller.
• Furthermore, it features a unique spiral shaft bearing for maximum service life.
• In addition, this kit includes the continuously rated FEM4070 variable speed motor, delivering smooth and efficient operation under variable load conditions.
• With no wetted seals and full compatibility with IBC containers and 200 L drums, this pump handles AdBlue efficiently.
• It is ideal for fleet operators, agricultural applications and industrial fluid handling.

• Pump type: Flux FP 424 PP/S-41/35Z seal-less

• Outer tube material: Polypropylene (PP)

• Driveshaft: Stainless steel with 6 mm diameter for maximum vibration resistance

• Inner tube: High strength PP with unique PTFE spiral shaft support bearing

• Impeller: ETFE semi-axial impeller

• O-rings: FKM (non-wetted)

• Immersion length: 1200 mm

• Outer tube diameter: 41 mm

• Motor type: FEM 4070, brushed commutator, variable speed

• Power supply: 230V 50Hz

• Ingress protection: IP24

• Power rating: 500W

• Duty cycle: Continuous duty

• Housing type: Single-wall, internally cooled, double insulated

• Housing material: Polyamide

• Cable length: 5 m

• Plug Type: UK 3-pin plug adaptor included

• Alternative 110V motors and compressed air motors available on request.

• Hose: PVC, DN19, 3 m length

• Hand nozzle: Polypropylene hand nozzle (optional auto-stop)

• Compression gland: Polypropylene G2″ male thread

• Max flow rate: Approx. 50 LPM1

• Max discharge pressure: 1.8 Bar

• Maximum liquid temperature: 50 degrees C

• Max density: Approx. 1.5 kg/L

• Max viscosity: Approx. 700 mPas

• Solids: Not suitable for large quantities of solid particles (see model FP 430)

* measured using water at 20°C with hose and hand nozzle connected.

1. Seal-less design for enhanced reliability
   Firstly, the seal-less design minimises leak risk associated with mechanical seal failure. Furthermore, this reduces maintenance intervals and allows the pump to be run dry for limited periods without damage.
2. Spiral bearing for optimal drainage and service life
   The unique Flux 24 mm spiral bearing supports the driveshaft across a large surface area, damping vibrations and delivering extended service life.  The spiral design promotes liquid drainage, thereby minimising retention of residual liquid.
3. Semi-axial high pressure impeller
   Furthermore, the ETFE semi-axial impeller delivers high discharge pressure and reduced flow for optimal dispense control.
4. Reversible driveshaft design
   The class-leading 6 mm stainless steel driveshaft can be reversed, subsequently doubling pump service life and delivering maximum return on investment.
5. Free of non-ferrous metals
   Suitable for handling AdBlue®, DEF, coolant and also brake fluid, the FP 424 pump kit prevents contamination with a design entirely free of non-ferrous metals, complying with ISO 22241 standards.

• Bulk transfer of AdBlue®, DEF and additionally urea solutions

• Brake fluid and coolant transfer

• Automotive service centres and fleet depots

• Agriculture and also off-road equipment top up

• Chemical distribution and dispensing

*AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA)

• Resistant to dry running

• Reduced risk of seal failure

• Stainless steel driveshaft

• Screw on foot piece allowing for quick disassembly and fast servicing

• Oversized bearings reduce vibration and noise levels

• Continuous duty motor

• Made in Germany

• Low maintenance, fully serviceable design with all spare parts available

• Fully compatible with ISO 22241 AdBlue® systems
