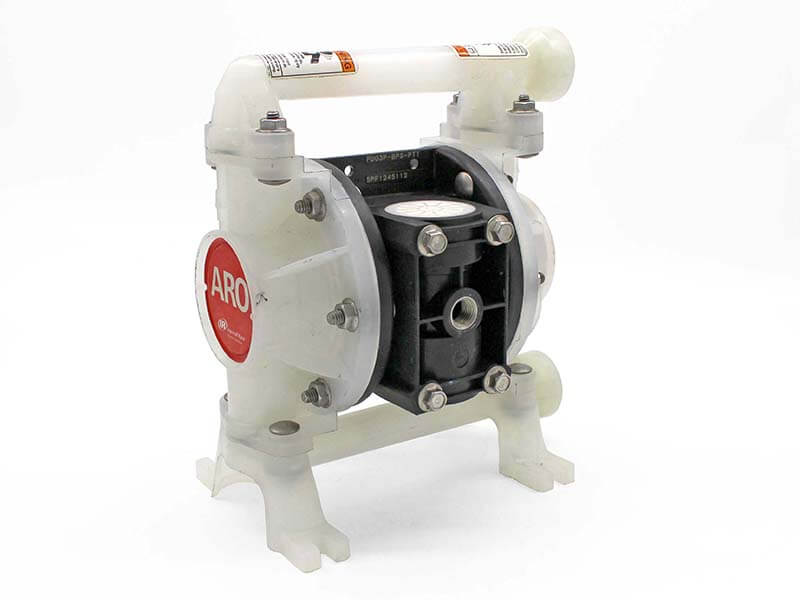

ARO Air Diaphragm Pump | 3/8" Compact EXP Series

Compact, powerful and built for performance—the Compact EXP Series Aro air diaphragm pump is a smart choice for chemical transfer applications where space is limited but reliability is non-negotiable. Designed with a polypropylene (PP) body and PTFE balls and diaphragms, this pump handles a wide range of aggressive or abrasive fluids with ease. Whether you’re transferring acids, alkalis, chemicals, or slurries, the ARO Compact EXP Series provides performance and durability you can rely on. Despite its small size, this ARO air diaphragm pump delivers an impressive flow rate of up to 40 LPM (10.6 GPM). With stainless steel hardware and an integrated muffler, the pump delivers quiet, vibration-free operation while resisting corrosion in demanding industrial environments.

ARO Part No.: 15265093
ARO Code: PD03P-BPS-PTT
Flux Part Code: FDM 10 PP/TT
Flux Part No.: 10-M1040110

Hardware: Stainless steel

Material construction: Polypropylene (PP) with PTFE wetted parts

Maximum flow: 40.1 LPM

Displacement per cycle: 0.022 gal (0.083 L)

Air inlet: 1/4″ BSP

Fluid inlet/outlet: 3/8″ BSP female thread

Maximum operating pressure: 6.9 Bar

Suspended solids capacity: Up to 1.6 mm

Maximum dry suction lift: 2.8 m

Sound level: 73 dB(A) at 70 PSI

Weight: 1.6 kg

Also supplied with integral muffler

ARO EXP air diaphragm pumps feature the exclusive D-Valve system which prevents diaphragm stalling and air blow-by, thus ensuring consistent performance and reduced downtime. The ceramic sealing enhances durability, offering superior resistance to wear and chemical degradation, while optimising air consumption.

The SimulShift™ valve ensures smooth trip-overs, reduced pulsation and maintains laminar flow, making these pumps ideal for handling viscous or foaming liquids while delivering consistent flow.

All 1/4″ to 2″ non-metallic ARO PD pumps are upgradeable for solenoid operation, stroke monitoring and also leak detection. By replacing two plugs with proximity sensors or leak detectors, these pumps can be integrated with the ARO controller, thereby delivering process control along with real-time monitoring.

Chemical dosing

Laboratory and also pilot plant processes

Ink and paint transfer

Wastewater and effluent handling

Food products or cosmetic media (FDA version)

If you need a robust pump in a small package, the EXP Series ARO air diaphragm pump is ideal. Additionally, speak to our team today about compatibility with your pumped fluids.
