FBM 4100 Battery Operated Drum Pump Motor

A robust battery operated drum pump motor delivering fast, cordless liquid transfer from drums and IBCs - with smart controls to boost speed, safety and repeatability.

Key features

• High-efficiency brushless motor with Einhell 36 V battery management for extreme run times
• IP 24 enclosures for Einhell Power X-Change PLUS 4 Ah batteries.
• Adapts to 6 Ah and 8 Ah Einhell batteries - handles the toughest, heavy-duty pumping tasks
• Choose from 420 W ventilated (IP 24) or 260 W enclosed (IP 44) designs - for the right balance of power vs. protection
• High performance: flow rates up to 218 L/min and discharge pressure up to 30 m WC
• 10-stage variable speed adjustment for ultimate flow control

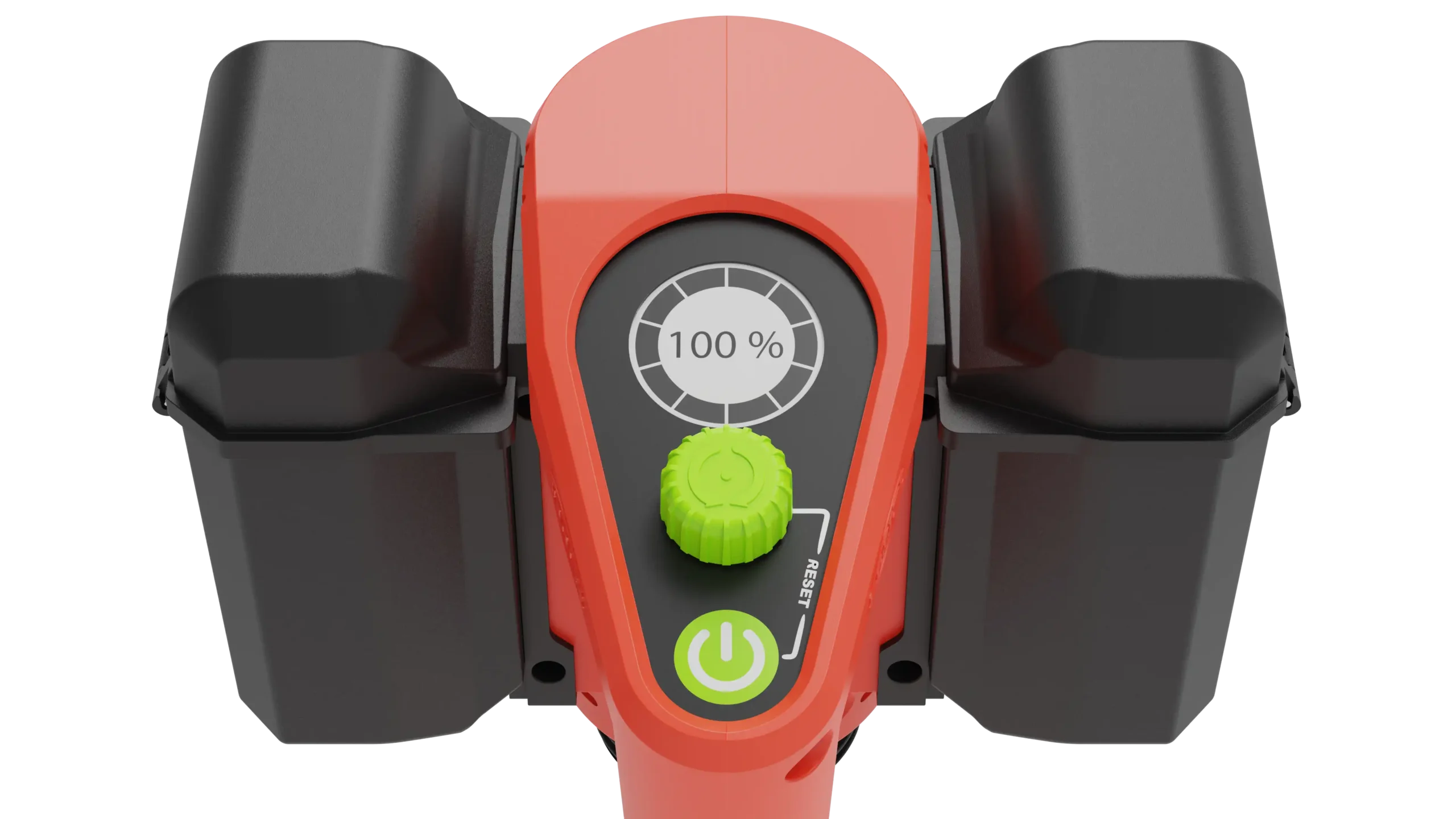

• Smart control: Clear LCD display shows speed, battery charge and operating mode at a glance.
• Integrated programmable batch dispensing: store 6 batch profiles for consistent, repeatable filling
• Protection built‑in: Standard programmable dry‑run protection
• 200‑lumen LED barrel lighting for operator convenience
• System‑ready: Pro version adds a PRO 5‑pin interface for connection to flowmeters, level sensors and remote start/stop controls
• Compatibility: fits 400 series tubes, VISCOPOWER F 570, MINIFLUX, plus many third‑party tubes using Flux adapters.



Power	420 W (ventilated) / 260 W (enclosed)
Speed range	5,500–12,250 rpm (10 steps)
Max delivery rate	Up to 218 L/min
Max head	Up to 30 m WC
Max viscosity	5,000 mPas
Runtime (per charge)	~28 drums / 5 IBCs (approx. 10,000 rpm)*
Battery platform	2× 18 V / 4 Ah Li‑Ion (Einhell Power X‑Change)
Protection class	IP24 (ventilated) / IP44 (enclosed)
Display / Light	LCD / 200 lumen LED
Weight	≈ 2.8 kg incl. batteries & covers

*Performance data

Empties a 200 L water‑filled drum in under one minute (20 °C, free outlet). Real‑world results vary with liquid, temperature, delivery head, hose size/length and accessories.

• 420 W brushless motor delivers extra power – performance is similar to a 600 W brushed motor
• Cordless productivity: faster, easier container changeovers and fewer delays
• All‑day runtime: empty multiple drums / IBCs per charge – keep workflows moving.
• Safe: eliminates cable trip hazards, protects the operator from accidental electrical shocks.
• Smart: Programmable dispensing for cost-effective, repeatable filling.  Dry run protection prevents accidental damage
• Right design for the job: choose ventilated for max performance, or enclosed for fume ingress protection.
• Intelligent: Connect flow meters, level sensors and FLUXTRONIC® controls directly via 5-pin connector.
• LED barrel light for visual indication of remaining liquid.

• Core:  Variable speed control, LED work light, dry‑run protection, batch dispensing function with 6 programs.
• Pro: All Core features plus PRO interface for direct device connectivity and remote start/stop.
• Standard 420 W ventilated models: IP 24 ingress protection
• 260 W sealed models: IP 44 ingress protection for corrosive atmospheres

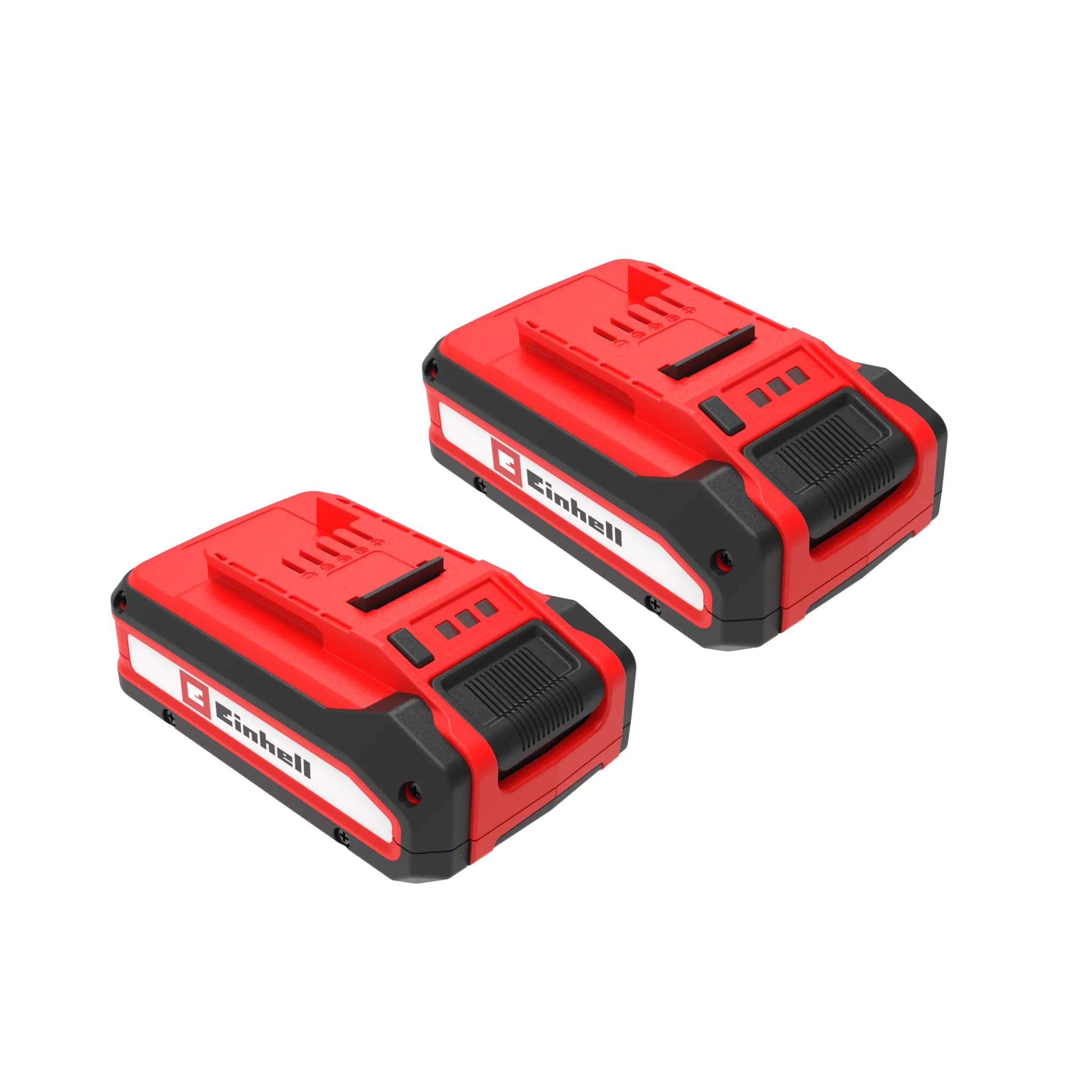

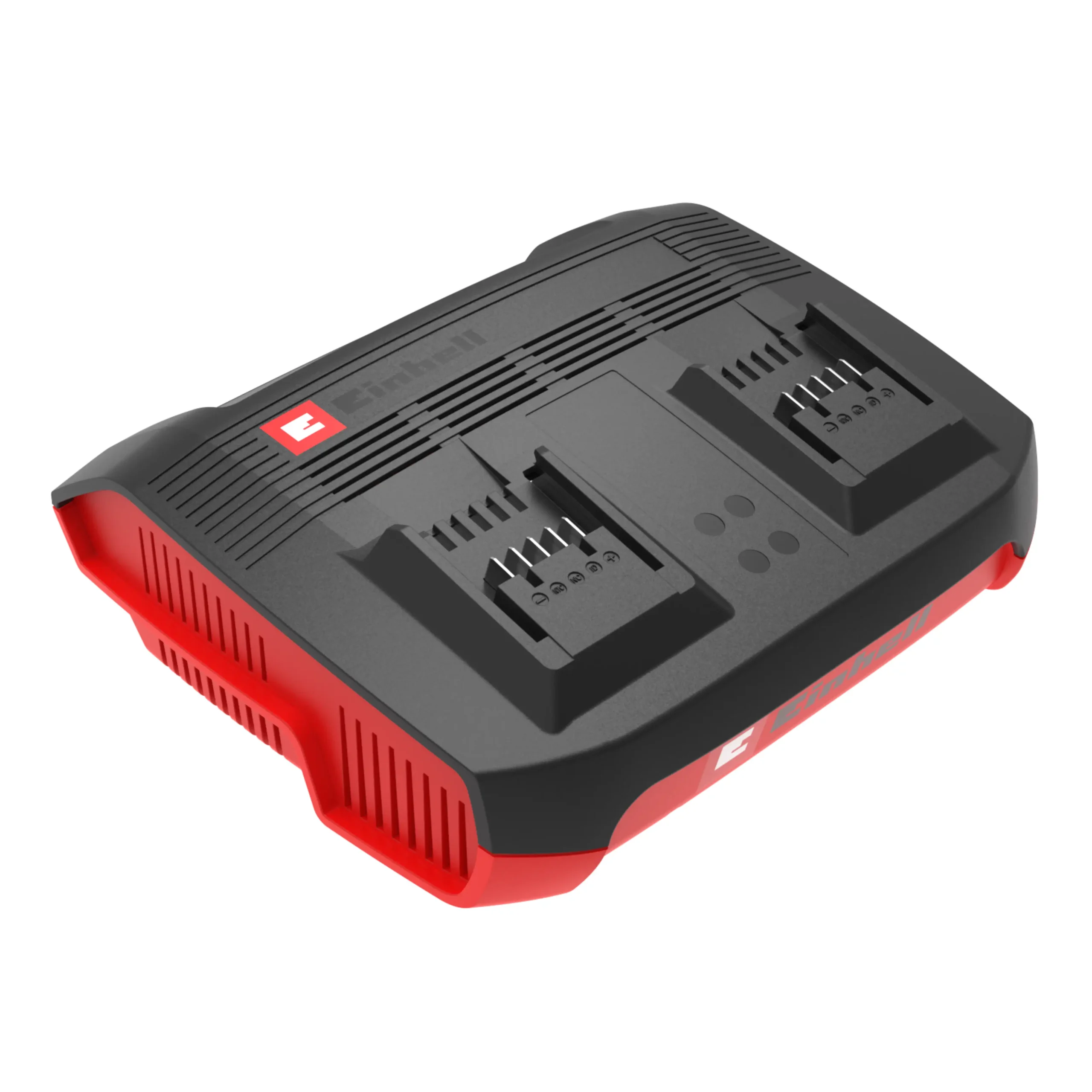

• Available with / without Einhell 4 Ah PLUS batteries and twin charger.

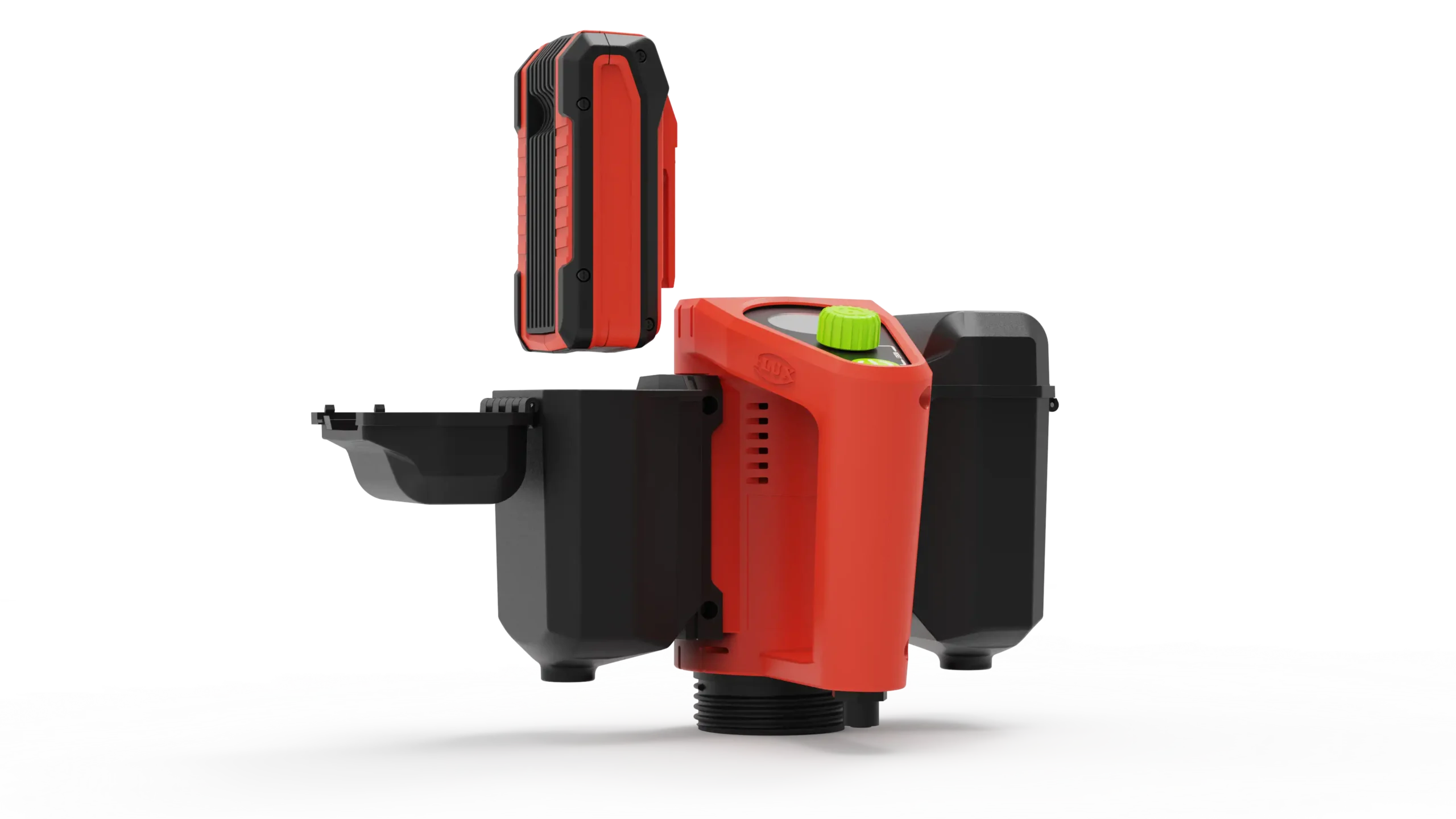

• Compatible with all Einhell PXC series batteries from 2.5 – 8 Ah (detach battery enclosures to install larger batteries)
