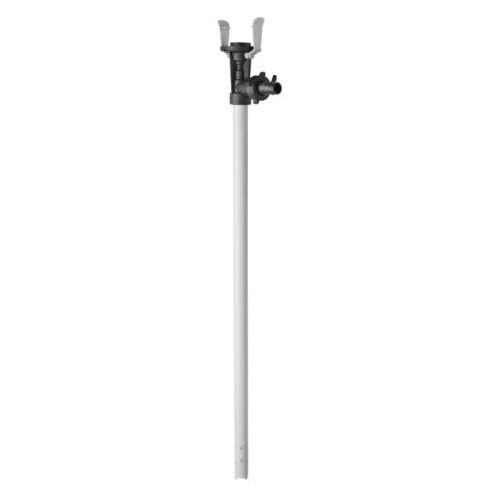

Flux CombiFlux F 314 Electric & Battery Drum Pump Tubes

Pump type

F 314 Combiflux, centrifugal, seal-less

• Outer tube material: Polypropylene (PP), PVDF, or Stainless Steel 316 Ti

• Driveshaft: Hastelloy C or Stainless Steel 316 Ti*

• Inner tube system: Integrated with unique Flux spiral shaft bearing

• Impeller: ETFE axial (chemical resistant)

• Bearings: PTFE / Carbon composite

• O-rings: FKM

• Immersion lengths: 500 mm and 700 mm (for small container/ hobbocks), 1000 mm (for 200-220 l barrels and drums), 1200 mm (for IBC containers)

• Outer tube diameter: 25 mm, 28 mm or 32 mm*

• Outlet connection: G 1 A (PP / PVDF), G 3/4 A (Stainless steel)

• Weight (without motor): 0.3–1.5 kg*

• Motor connection: Dual quick-release clamp

*Depending on pump length and material

Please note pump tubes are supplied individually – hose connection and motor must be ordered separately.

• Max flow rate: From approx. 30 L/min1 up to 60 L/min1 (depending on diameter and material)

• Max delivery head: Approx. 8.5 mwc1

• Maximum liquid temperature: 45 degrees C (Polypropylene) and 60 degrees C (Stainless steel & PVDF)

• Max density: Approx. 1.3 g/cm³ (under continuous use)

• Max viscosity: Approx. 250 mPas (under continuous use)

• Dry run capability: Suitable for dry limited running

*Measured with water at 20 degrees C in open flow condition

• Acid handling in plating shops and metal processing facilities

• Dispensing lye in soap manufacturing

• Pumping Adblue, glycol, diesel, mineral oil and brake fluid in vehicle service centres and recycling facilities

More applications

• Transferring sodium hydroxide and potassium hydroxide from 70 litre canisters

• Dispensing fragrance oils in cosmetics manufacturing

• Transferring swimming pool and water treatment disinfectants from 25 litre containers

Dilute acids

Sulphuric acid, nitric acid, phosphoric acid**

Alkalis:

Sodium hydroxide, potassium hydroxide

Other media:

• Solvents, degreasers and cleaning agents

• Liquid fertilisers and aqueous solutions

• Water, light hydrocarbons and oils

• Acetic acid and low-density organic compounds

*Check material compatibility before use

**For dispensing smaller quantities only. Subject to use of enclosed, IP 44 double-walled battery motor.

Please see our comprehensive list of media examples suitable for the CombiFlux, based on pump material, here.

CombiFlux pumps are the World’s best, lightweight, low viscosity drum pumps for emptying smaller containers and for infrequent use. Thanks to the unique Flux spiral shaft bearing, this pump consequently delivers class-leading service life with minimal maintenance requirements.

Furthermore, the Flux CombiFlux FP 314 battery drum pump is a modular, robust industry-proven solution. Its seal-less design with ETFE axial impeller addresses two common failure points in many drum pumps—seal failure due to lack of preventative maintenance, and also impeller wear from use of lower quality impeller materials.

Dry-running

By eliminating the mechanical seal entirely, the FP 314 can subsequently handle limited dry running without damage, simplifying maintenance requirements and reducing downtime caused by seal failure and fluid leakage.

Moreover, the interchangeable motor coupling, featuring a dual quick-release clamps, means that a single FBM-B 3100 battery motor, or FEM 3070 electric motor, can be used to power multiple pump tubes.

Furthermore, this design reduces up-front investment costs, optimises equipment use, speeds up dispensing processes and additionally, prevents cross-contamination between different fluids.

For facilities managing batch production and handling many different chemicals, this modular architecture consequently significantly increases process efficiency and ROI.

The answer is – probably. You can use CombiFlux FP 314 pump tubes with a wide spectrum of common fluids at temperatures up to 80°C*. Furthermore, with material options that include polypropylene (PP), PVDF and 316 Ti stainless steel, you can choose the most suitable material for your application.

Common media include:

• Dilute acids (e.g. hydrochloric acid, sulphuric acid, acetic acid)

• Alkaline solutions (e.g. sodium hydroxide, ammonia, detergents)

• Low-viscosity oils and emulsions

• Aqueous salt solutions, surfactants and CIP fluids

Components such as the ETFE impeller, PTFE / carbon composite bearings and Hastelloy C driveshaft are selected specifically for their high resistance to pitting, crevice corrosion and stress cracking, therefore ensuring long service life, even in tough chemical handling environments.

In addition, the pump can handle viscous fluids up to 250 mPas and high-density fluids up to 1.3 SG, under continuous duty use. However, only pump higher viscosity, or higher density fluids for short periods, as they drain the battery quickly.

Please note

Most importantly, note this battery drum pump is not suitable for use in Zoned areas, or for pumping highly flammable media with a flashpoint below 50 degrees C. Furthermore, the pump is not approved for handling edible food products and beverages.

*Depending on material selection
