Detachable Drum Pump Motors for Flux Combi Drum Pump Tubes

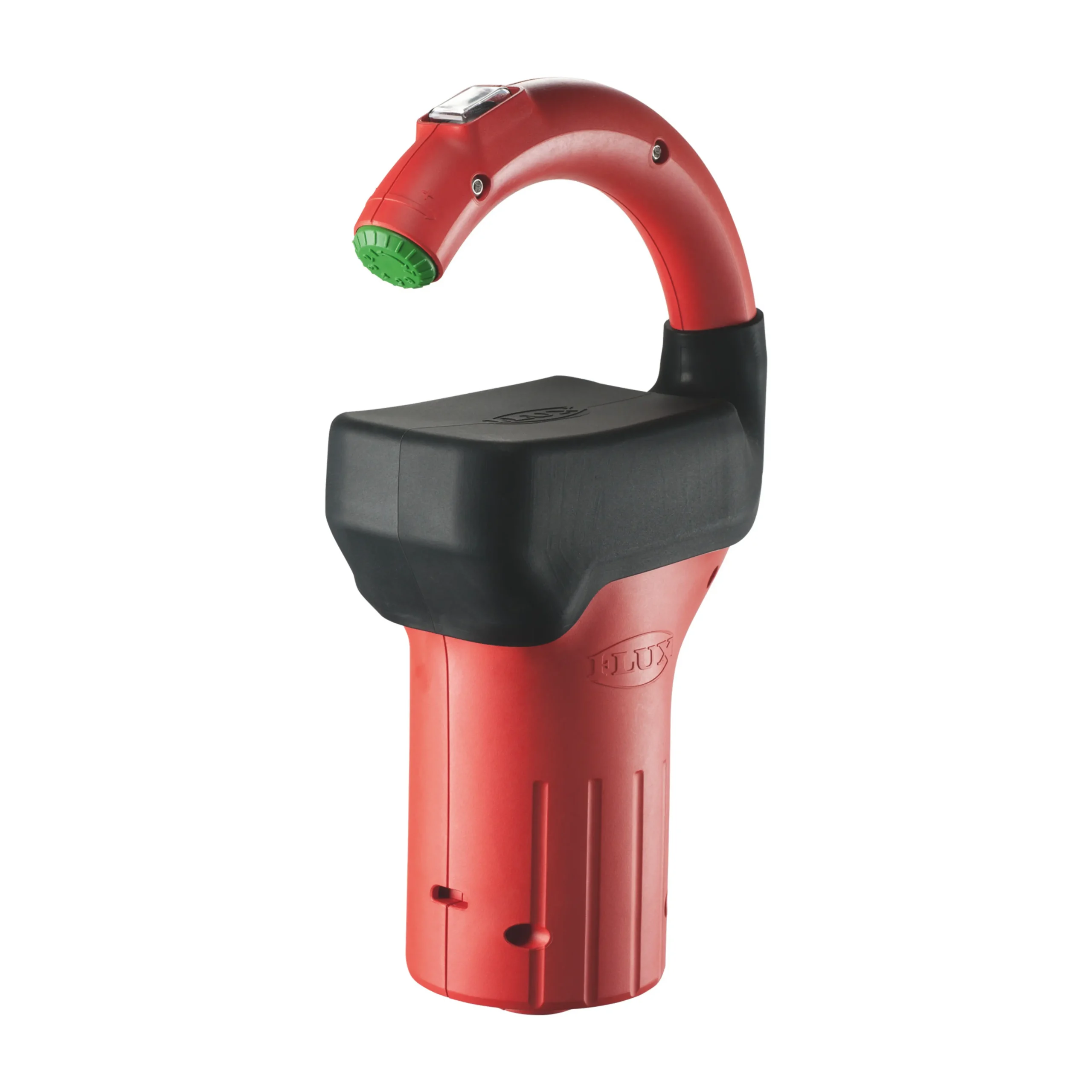

FEM 3070 electric commutator motor

• Flux part numbers: 10-30701000 (230 V) and 10-30701003 (110 V)

• Motor type: Two-stage speed control

• Power supply: 230 V or 110 V (50–60 Hz)

• Ingress protection: IP24

• Power rating: 230 W

• Duty cycle: S1 continuous duty

• Housing type: Single-walled, internally ventilated, double insulated (Class II)

• Housing material: Polyamide

• Weight: 1.5 kg

• Max ambient temperature: -20 to + 40 degrees C

• Cable length: 5 m

• Plug type: UK 3-pin plug adaptor included with 230 V motor

• Overload protection: Integrated cut-out

• Certifications: UKCA, CE, VDE-GS

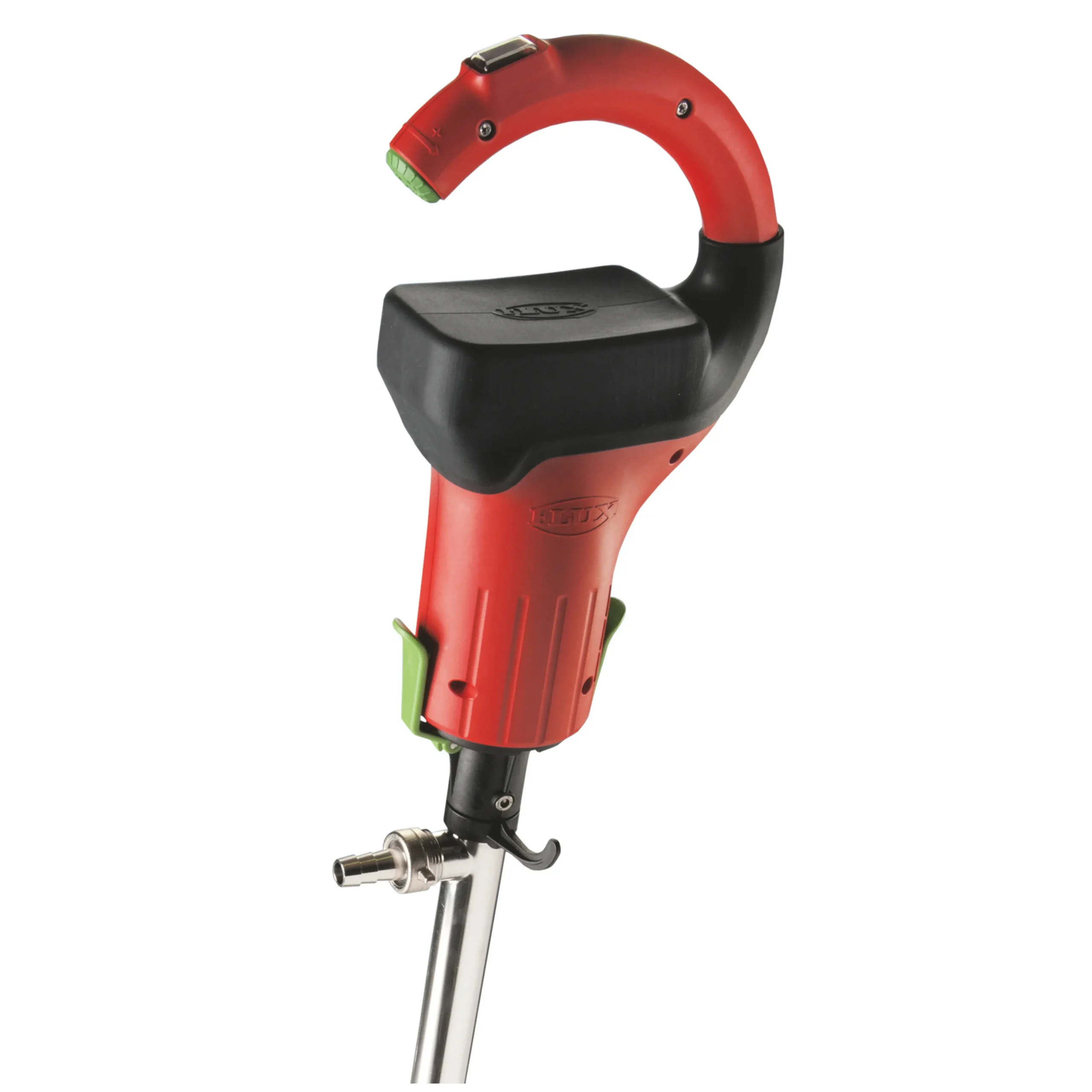

• Flux part numbers: 10-30101000 (with 230 V charger) / 10-30101003 (with 110 V charger) / 10-30101001 (without charger)

• Motor type: Brushless battery motor with soft start, stepless speed control from 5000 to 15,000 RPM

• Ingress protection: IP44

• Power rating: 200 W

• Duty cycle: S1 continuous duty

• Housing type: Double wall, double insulated- protection class II, overload switch, low current cut-out, electronic temperature control

• Housing material: Polyamide (resistant to steam and corrosive fumes)

• Ambient temperature range: 0 to 40 degrees C

• Weight: 1.2 kg

• Certifications: UKCA, CE, VDE-GS

Battery model:

B15-3100

• Type: Lithium-Ion, 18V, 2.5 Ah

• Battery protection: Overload, deep discharge, overcurrent, short circuit

• Sleep mode: Yes

• Dimensions: 115 x 75 x 46 mm

• Ambient temperature for storage: – 20 to + 60 degrees C

• Weight: 350 g

Charger model:

BCH-3100

• Charging time: 30 minutes

• Voltage: 220-240V, 50-60 Hz

• Temperature loading range: + 5 to 40 degrees C

• Ambient temperature for storage of charger: – 20 to + 60 degrees C

• Insulation class: T40/E

• Cable length: 2 m with 3-pin plug adaptor

• Protection features: Reverse polarity, defective battery detection, electronic temperature control

• Status display: LED indicators

• IP rating: IP30

Firstly, professionals in laboratories, production facilities and water treatments plants require reliable drum pump motors that provide power and control, along with ergonomic design. The FEM 3070 and FBM B3100 motors meet these needs.

Furthermore, these heavy-duty, S1 classified motors provide certified electrical safety and modular adaptability – ideal for a range fluid handling process.

The detachable motor design also minimises equipment redundancy. Multiple pump tubes can be powered by a single motor, therefore providing flexibility with lower capital expenditure.

Moreover, the cordless FBM B3100 battery motor has a double-walled housing, with IP 44 ingress protection, making it suitable for use in environments where corrosive fumes or steam may be present. This brushless motor is designed for industrial use, with electronic temperature control, overload protection and soft-start functionality delivering reliable performance.

Award-winning motor

After all, this product is a winner of both RedDot industrial design and iF product design awards. Finally, this motor can be used anywhere – outdoors, or in remote locations where not power supply is available.
