Flux F 416 Ex Air Motor – Drum Pump Air Operated for Industrial Applications

There are three F 416 Ex options available:

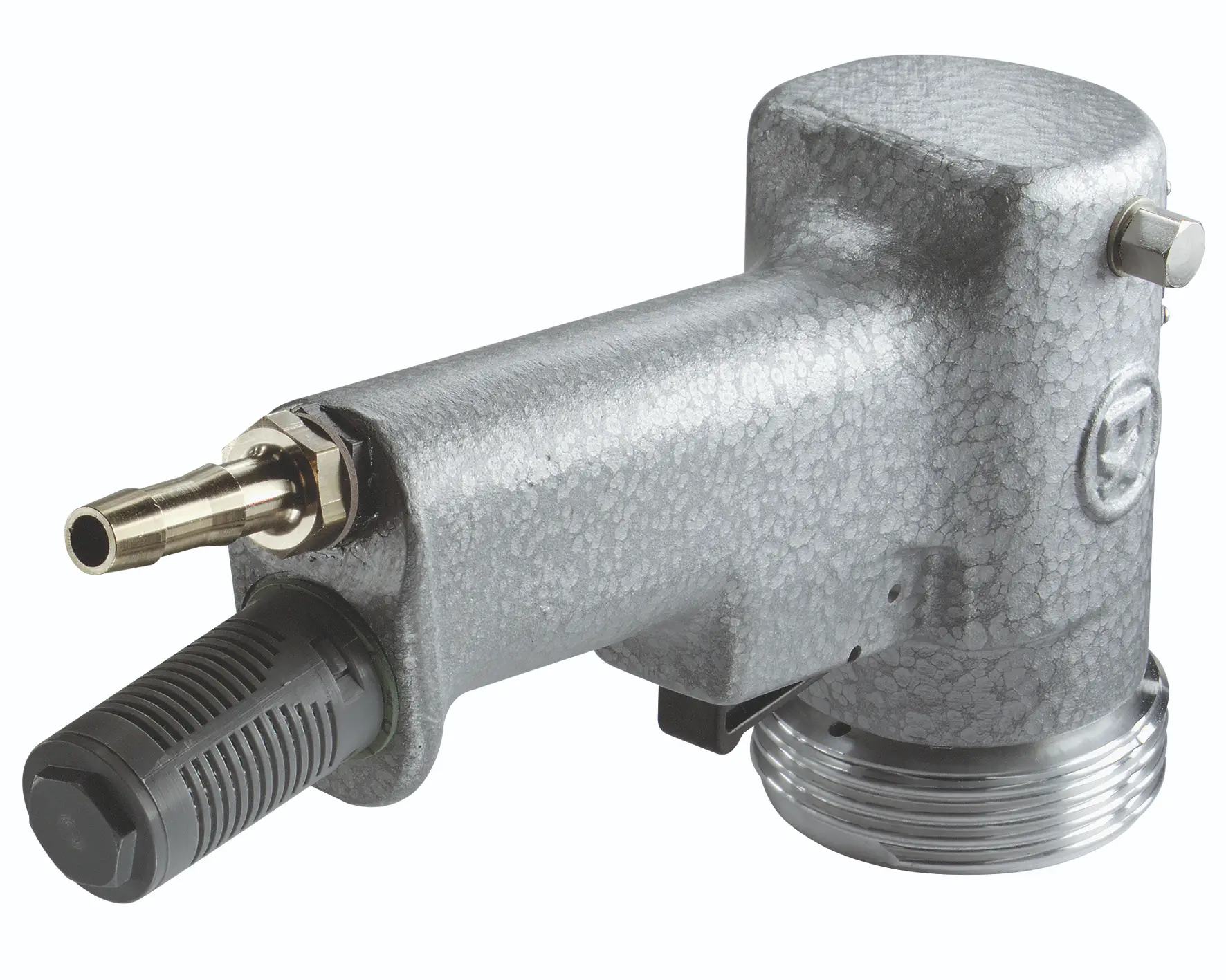

• Trigger operated, with manually controlled locking function

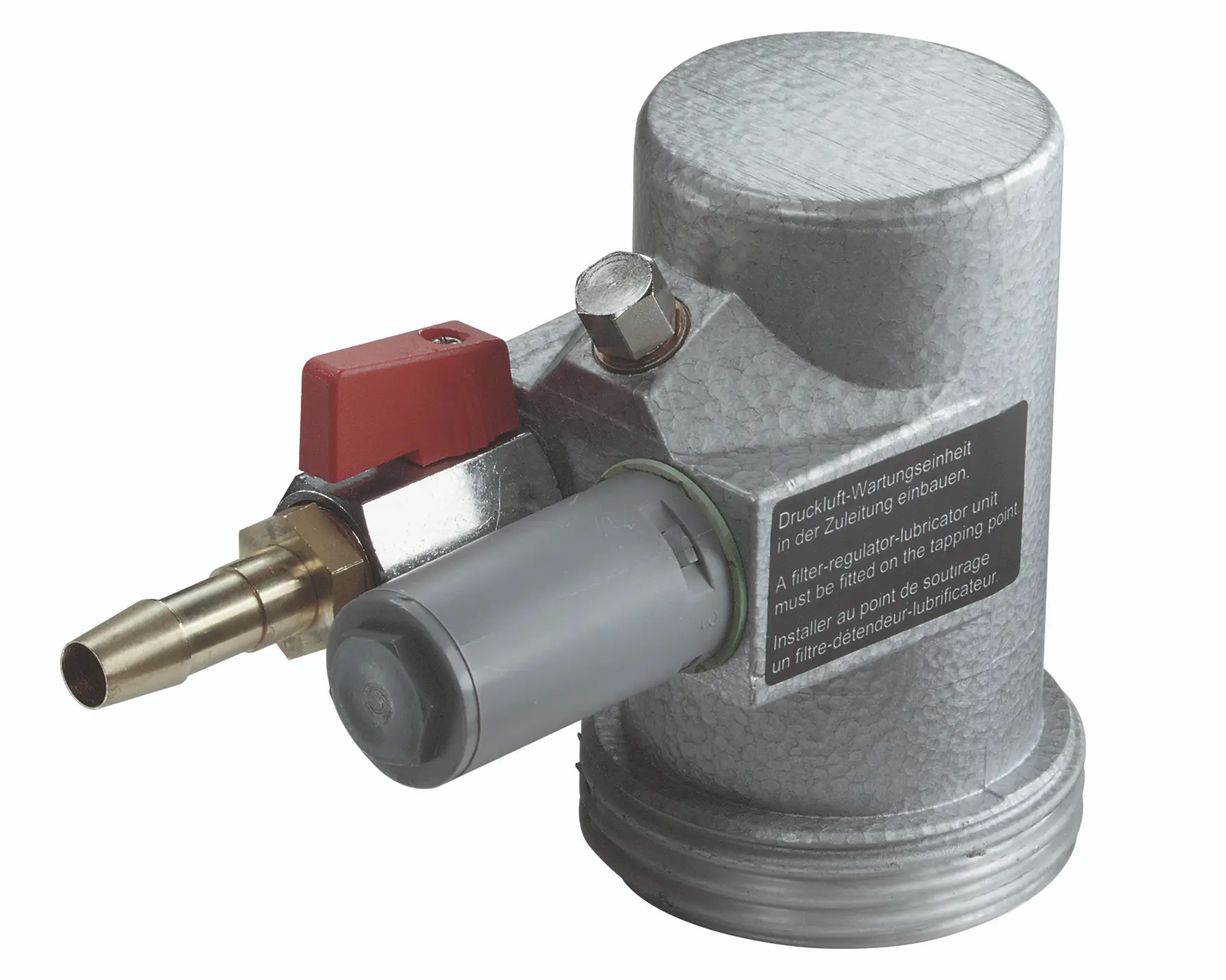

• With ball valve for flow control

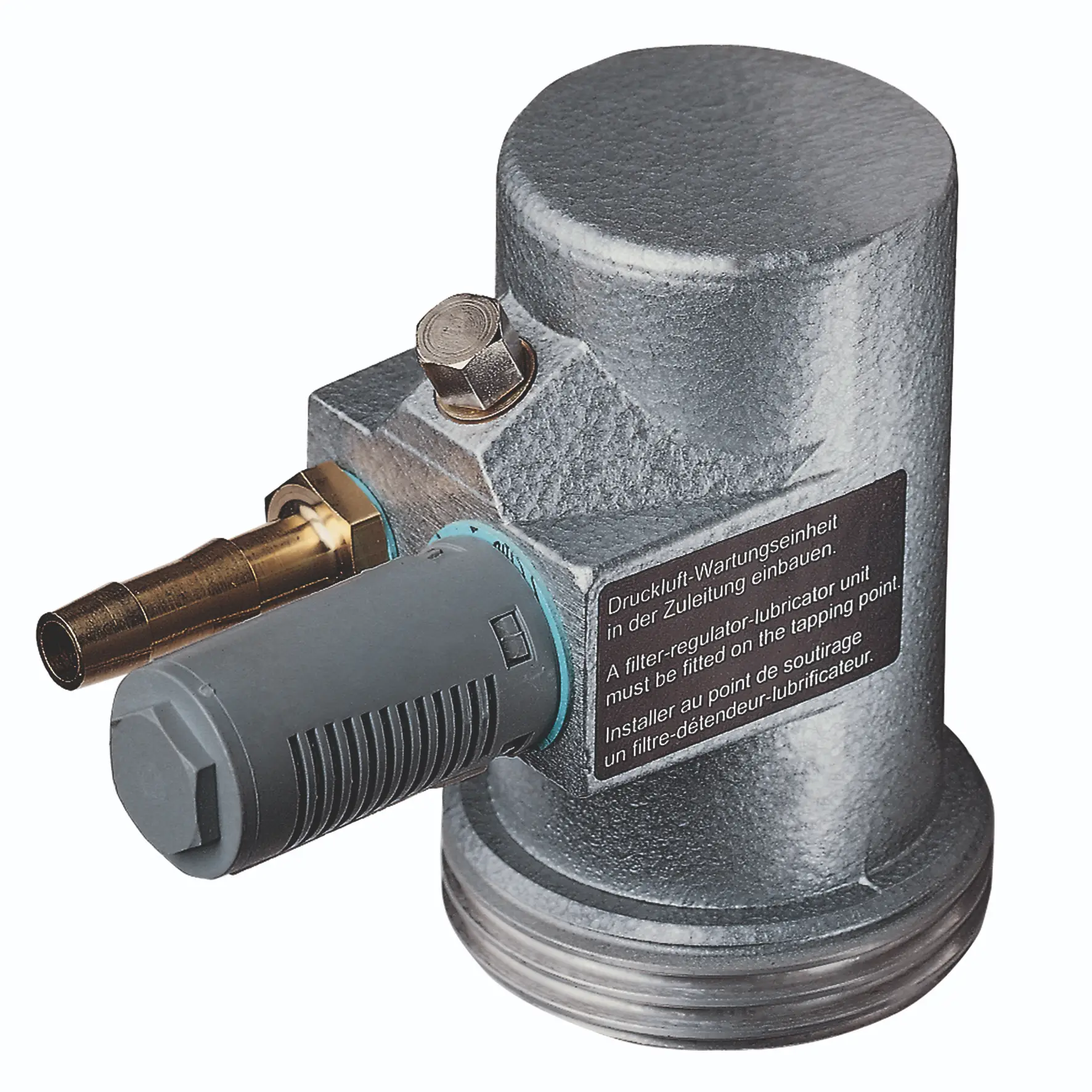

• Without ball valve for remote operation, eg. by solenoid valve

Part numbers available

• 10-41600131
• 10-41600132
• 10-41600133

Motor type:

• F 416 Ex, compressed air-driven rotary vane motor
• Ex-classification: ATEX II G IIC T6 (suitable for Zone 1/2 use)
• Operating pressure: 6 bar max compressed air supply
• Speed at rated capacity: 10000 1/min
• No-load speed at operating pressure 6 bar: 20000 1/min
• Rated torque: 0.45 Nm
• Starting torque: 0.54 Nm
• Air connection: BSP ¼ “ female
• Air consumption: ~ 14 l/s
• Power rating: Approx. 900 W max (dependent on air volume)
• Duty cycle: Continuous operation
• Housing material: Cast aluminium with corrosion-resistant paint
• Silencer: Integrated. Optional oversize silencer for remote mounting also available.
• Speed control: Via ball valve or external air regulator
• Earth bonding connection: Yes
• Weight: 0.9 – 1.4 kg (depending on model)
• Sound level: 82 dB (A)
• Rangle of application: safe areas, hazardous areas containing flammable vapours and gases only
• Explosion group (limiting gap width): C (MESG <0.5)
• Max ambient temperature: 40 degrees C

Powerful but ergonomic

Firstly, the Flux F 416 Ex air motor is powerful and easy to handle. Its minimal weight, under 1.5 kg in all variants, means operators can comfortably use this motor for long shifts without risk of strain. It delivers unparalleled safety and performance in hazardous fluid transfer operations.

The 900 W power output delivers high flow rates and discharge pressure, ideal for tough pumping applications. Typical applications include IBC mixing in combination with the F 426 pump, pumping fluids to the top of reaction vessels or tanks, and handling high-viscosity, adhesive media, in combination with the F 570 pump.

The F 416 Ex is constructed from electrically conductive materials, therefore eliminating ignition risks associated with spark generation. Therefore, this motor is safe to use in ATEX Zone 1/2 classified areas where flammable vapours, or explosive gases may be present.

However, the motor is not certified for use in areas with explosive air-dust mixtures.

Lubrication

Unfortunately, one of the downsides of compressed air motors is their need for lubrication. Typically, this takes the form of a lubricator unit installed in the air supply line, comprising a bowl filled with mineral oil. As air flows through the bowl, a small amount of oil is picked up and carried to the motor.

The F 416 Ex motor utilises spring-loaded, polyester-ceramic blades that do not require oil lubrication.

Although vane life may be negatively impacted to a small degree, lube-free operation is a significant benefit in certain industries. For example, pharmaceutical production, food manufacturing and laboratory environments, where oil mist from the motor exhaust may be a contamination risk.

Drum pumps for safe area use are most commonly powered by electric motors, primarily due to their convenience, flexibility and low noise output. However, thanks to its inherent safety, compressed air is an ideal power source for pumping flammable, volatile chemicals, such as fuels and solvents.

Therefore, compressed air supplies are commonly installed in Ex-designated industrial settings, such as manufacturing plants, oil & gas facilities and chemical handling areas.

Because of costs and safety concerns, such areas may have limited access to mains electricity, therefore a drum pump air operated motor, like the Flux F 416 Ex can be a sensible choice.

However, this assumes that the compressor can deliver the required air pressure and volume (and there is enough spare capacity available) to power the barrel pump motor.

The advantages of air powered drum and IBC pump motors over electric or battery motors include:

• Inherent safety in ATEX applications
• Suitable for continuous duty, or heavy duty applications
• Simple flow control – adjusting air pressure directly impacts motor speed and flow rate
• No need for power cables or batteries – enhanced mobility and safety
• Increased power output compared to electric motors
• Maintenance-friendly – few moving parts
• Suitable for remote operation via solenoid valve

Overall, however, electric motors are more cost-effective to run, compared to compressed air motors. This is because producing compressed air is inherently inefficient, as electricity is consumed by the compressor, to create the compressed air.

When the purchase cost of the compressor and the cost of installing the air supply network in a building is factored in, a compressed air installation may not be viable. In addition, Flux offers Ex-certified electric motors, including the brushless FBM 4000 model, which is ideal for heavy-duty use in Ex-classified, Zoned areas.

Air motor stalling can occur due to a few factors, but tends to occur more often during the initial break-in phase of a new motor. The vanes inside the Flux F 416 Ex drum pump air operated motor rely on centrifugal force to extend outwards and therefore engage with the rotor housing.

If the air is introduced too gradually, it may flow around the partially extended vanes instead of initiating full rotation. Consequently, this can result in the motor passing air, without turning.

To ensure proper operation:

• Firstly, introduce compressed air in a short, sharp burst to overcome vane inertia.
• Secondly, confirm the air supply is clean, dry, and filtered, with sufficient pressure and flow. The F416 Ex motor requires pressure up to 6 bar and air flow of 14 l/s to achieve maximum pumping rates.
• Although the motor can run without lubrication, applying a small amount of suitable mineral oil directly to the air inlet can reduce friction and aid vane mobility. This is particularly relevant if the air supply is suspected to contain contaminants, or moisture.
• Finally, note that new air motors are more prone to stalling during their bedding-in period.

If the motor continues to stall, contact our support team—your unit may require inspection or service. We can install a replacement rotor and vanes and return the motor with a new 1 year warranty.
