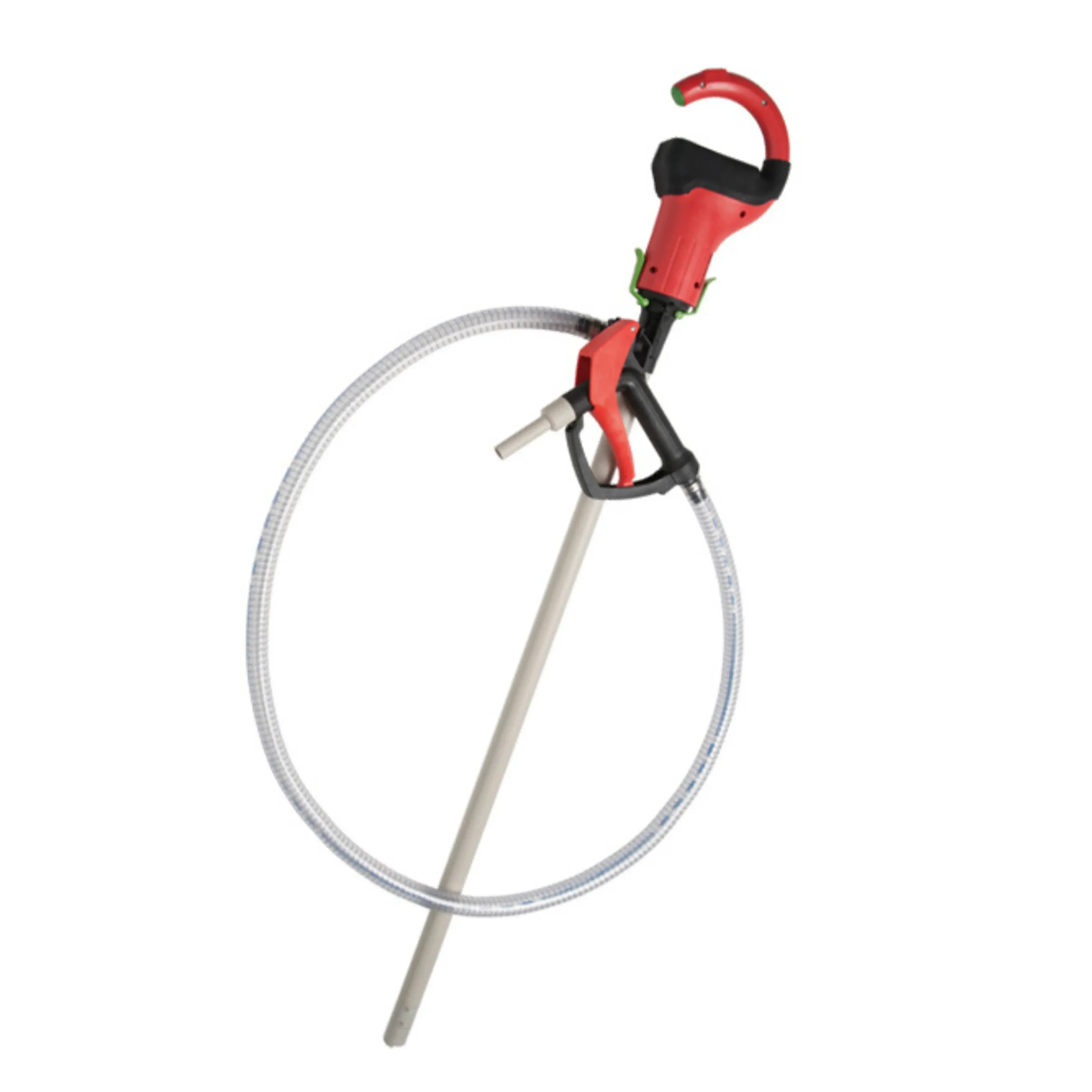

Flux Pumps Portable Drum Pump Kit with Detachable Battery Motor

• Polypropylene seal-less pump compatible with a range of common chemicals

• Powerful, brushless battery motor with stepless speed control

• Fast-charger with 2.5 Ah lithium-ion battery

• DN19 PVC discharge hose (1.5 m)

• Polypropylene hand nozzle with FKM seal

Part numbers available

• 10-31449910

• Pump type: FP 314 PP-32/25, seal-less

• Outer tube material: Polypropylene (PP)

• Driveshaft: Hastelloy C

• Bearing: Unique Flux PTFE / carbon spiral bearing

• Impeller: ETFE impeller

• Immersion length: 1000 mm

• Outer tube diameter: 32 mm

• Outlet thread: G 1 A

Motor type:

FBM-B3100, brushless battery motor with soft start, stepless speed control from 5000 to 15,000 RPM

• Ingress protection: IP44

• Power rating: 200 W

• Duty cycle: S1 continuous duty

• Housing type: Double wall, double insulated- protection class II, overload switch, low current cut-off, electronic temperature control

• Housing material: Polyamide (resistant to steam and corrosive fumes)

• Ambient temperature range: 0 to 40 degrees C

• Weight: 1.2 kg

• Certifications: UKCA, CE, VDE-GS

• Battery model: B15-3100

• Type: Lithium-Ion, 18V, 2.5 Ah

• Battery protection: Overload, deep discharge, overcurrent, short circuit

• Sleep mode: Yes

• Dimensions: 115 x 75 x 46 mm

• Ambient temperature for storage: – 20 to + 60 degrees C

• Weight: 350 g

• Charger model: BCH-3100

• Charging time: 30 minutes

• Voltage: 220-240V, 50-60 Hz

• Temperature loading range: + 5 to 40 degrees C

• Ambient temperature for storage of charger: – 20 to + 60 degrees C

• Insulation class: T40/E

• Cable length: 2 m with 3-pin plug adaptor

• Protection features: Reverse polarity, defective battery detection, electronic temperature control

• Status display: LED indicators

• IP rating: IP30

• Motor connection: 2 x quick-release clamps

• Hose: DN19 PVC, 1.5 m length

• Hose connection: DN19 polypropylene

• Hand nozzle: Polypropylene with FKM seal and 22 mm nozzle outlet size

• Quick-release clamps for motor-to-pump connection

• Hand nozzle holder built into the pump outlet

• Max flow rate: Approx. 21 L/min1

• Max delivery head: 5 mwc

• Maximum liquid temperature: 45°C

• Max density: 1.3 kg/L

• Max viscosity: Approx. 250 mPas

*measured using water at 20°C with hose and hand nozzle connected.

If you need a durable, cordless and chemical-resistant pump kit for drum and container transfer, the CombiFlux Barrel Pump Kit is one of the most reliable, efficient options available. Furthermore, here’s why this portable drum pump stands out:

Completely portable – no power cable

Firstly, thanks to its high-capacity lithium-ion battery and lightweight construction, this pump is ideal for use in locations without mains power. Whether you’re moving between labs, across a warehouse, or working in outdoor environments, you can take this lightweight pump wherever you go. This portable pump is ideal for dispensing smaller quantities from narrow-necked containers due to its small outer tube diameter.

Quick-release motor system

Furthermore, the innovative quick-release coupling allows the motor to be detached and connected to alternative pump tubes in seconds. One motor can drive multiple pumps, thereby helping you reduce equipment costs and eliminating the need for cleaning, or flushing. Additional pump tubes are available from 500 – 1200 mm long, for small drums up to 1000 litre IBC’s.

Long-lasting battery with fast charging

In addition, the long-lasting 2.5 Ah Li-ion battery provides enough power to transfer 3,000 litres per charge. The smart charger provides 100% battery capacity in just 30 minutes. Consequently, that means less downtime and more productivity on site.

Low maintenance and easy to service

The brushless, totally-enclosed IP44 motor is maintenance-free and additionally all pump components are replaceable, with spare parts readily available. Furthermore, this pump is designed for long-term, heavy duty use with minimal upkeep costs.

Quiet, efficient operation

The motor’s brushless motor, soft start and stepless speed control make it quiet, smooth and safe to operate—especially important in noise-sensitive, controlled environments, such as laboratories or cleanrooms. Furthermore, the hand nozzle allows accurate dispensing.

Compact and easy to store

Finally, the modular, compact design and small footprint ensures it takes up minimal space on workbenches or storage shelves. It’s also easy to carry from one site to another, making it a truly portable drum pump solution.

This pump kit is ideal for the safe and reliable transfer of a variety of non-aggressive and moderately aggressive fluids, such as:

• Pumping fertiliser solutions and salt solutions in agriculture and horticulture

• Transferring cleaning agents and detergents for industrial cleaning

• Handling disinfectants and treatment chemicals in water and wastewater processes

• Transferring light oils, coolant and waste oil in manufacturing facilities and workshops

The Flux portable drum pump kit is ideal for the following liquids:

• Dilute acids and alkalis

• Cleaning agents and also detergents

• Light oils

• Fertiliser solutions

• Salt solutions

• Water and wastewater

• Fully portable – therefore, no mains power required

• Seal-less pump design provides excellent dry-run protection, helping to minimise maintenance, even when working with corrosive or challenging media.

• IP44 motor suitable for use when corrosive fumes or steam is present.

• Quick-release motor can be used with multiple pump tubes

• Pumps up to 3,000 litres per charge

• Lightweight and easy to carry

• Quiet, low-vibration operation

• Ideal for small containers and 200-220 litre drums

• Finally, chemical-resistant and serviceable design
