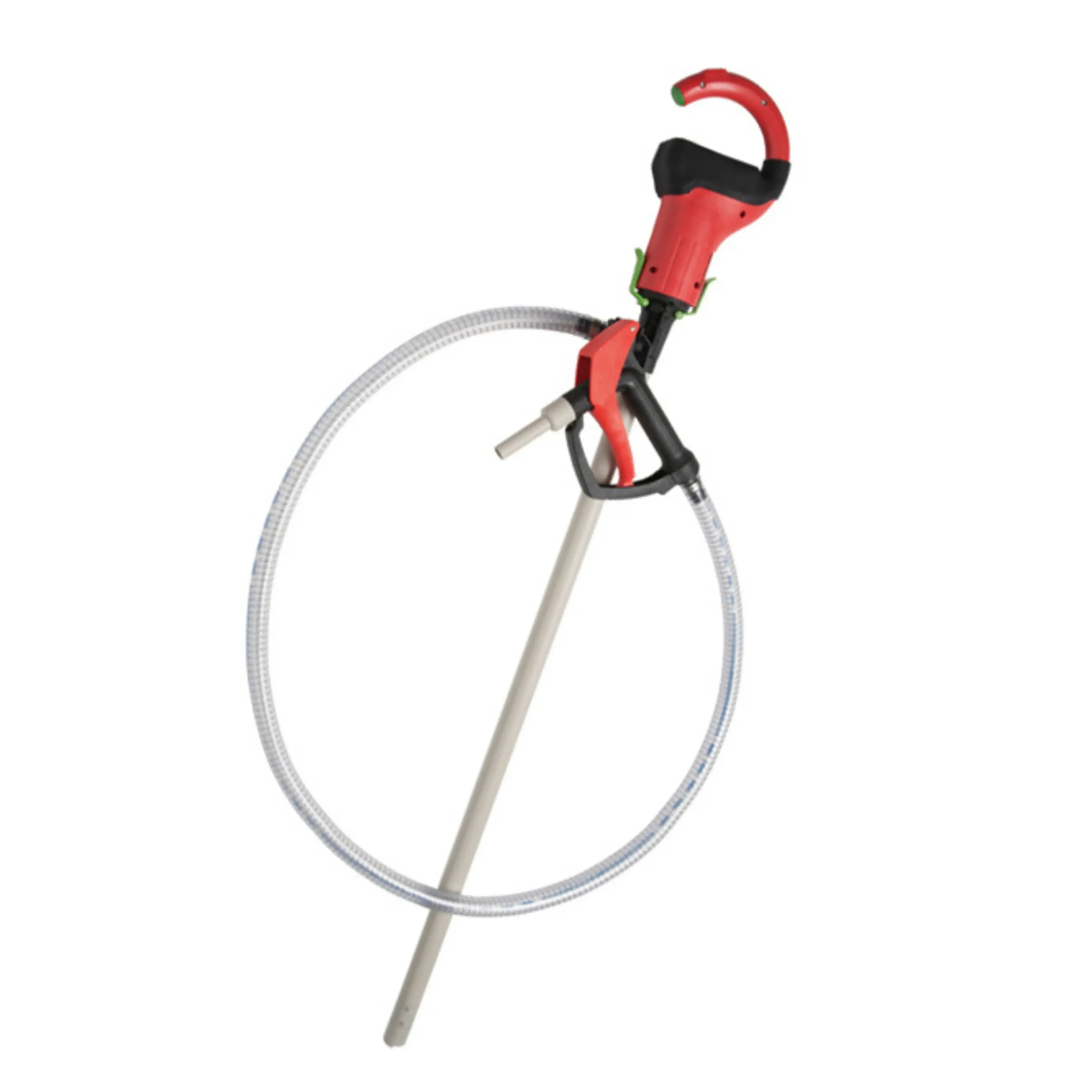

Flux Pumps Portable Drum Pump Kit with Detachable Battery Motor

• Pump type: FP 314 PP-32/25, seal-less

• Outer tube material: Polypropylene (PP)

• Driveshaft: Hastelloy C

• Bearing: Unique Flux PTFE / carbon spiral bearing

• Impeller: ETFE impeller

• Immersion length: 1000 mm

• Outer tube diameter: 32 mm

• Outlet thread: G 1 A

Motor type:

FBM-B3100, brushless battery motor with soft start, stepless speed control from 5000 to 15,000 RPM

• Ingress protection: IP44

• Power rating: 200 W

• Duty cycle: S1 continuous duty

• Housing type: Double wall, double insulated- protection class II, overload switch, low current cut-off, electronic temperature control

• Housing material: Polyamide (resistant to steam and corrosive fumes)

• Ambient temperature range: 0 to 40 degrees C

• Weight: 1.2 kg

• Certifications: UKCA, CE, VDE-GS

• Battery model: B15-3100

• Type: Lithium-Ion, 18V, 2.5 Ah

• Battery protection: Overload, deep discharge, overcurrent, short circuit

• Sleep mode: Yes

• Dimensions: 115 x 75 x 46 mm

• Ambient temperature for storage: – 20 to + 60 degrees C

• Weight: 350 g

• Charger model: BCH-3100

• Charging time: 30 minutes

• Voltage: 220-240V, 50-60 Hz

• Temperature loading range: + 5 to 40 degrees C

• Ambient temperature for storage of charger: – 20 to + 60 degrees C

• Insulation class: T40/E

• Cable length: 2 m with 3-pin plug adaptor

• Protection features: Reverse polarity, defective battery detection, electronic temperature control

• Status display: LED indicators

• IP rating: IP30

• Motor connection: 2 x quick-release clamps

• Hose: DN19 PVC, 1.5 m length

• Hose connection: DN19 polypropylene

• Hand nozzle: Polypropylene with FKM seal and 22 mm nozzle outlet size

• Quick-release clamps for motor-to-pump connection

• Hand nozzle holder built into the pump outlet

• Max flow rate: Approx. 21 L/min1

• Max delivery head: 5 mwc

• Maximum liquid temperature: 45°C

• Max density: 1.3 kg/L

• Max viscosity: Approx. 250 mPas

*measured using water at 20°C with hose and hand nozzle connected.
