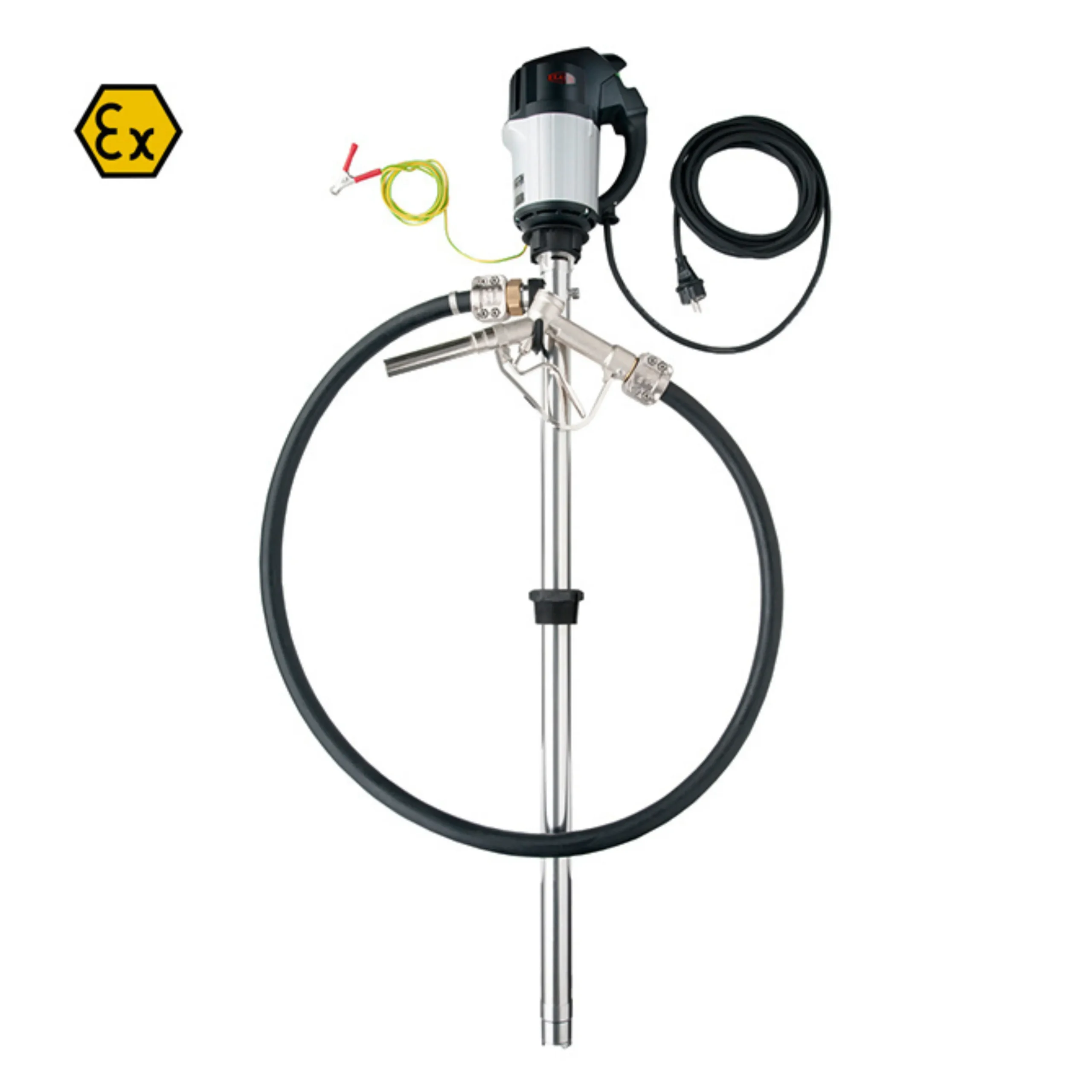

Flux F 424 Ex Solvent Barrel Pump Kit – For Highly Flammable Solvents

Firstly, the Flux F 424 Ex solvent barrel pump kit is a high quality, ATEX-certified solution for safely transferring highly flammable and volatile solvents. It is ideal for tough industrial, petrochemical and laboratory environments. This pump is constructed from stainless steel, PTFE and ETFE. It uses our highly robust, seal-less design, which virtually eliminates the risk of leakage or vapour release. Furthermore, the FP 424 Ex features the unique Flux PTFE spiral shaft bearing system and a removable foot piece. Consequently, it delivers class-leading long-term durability and superior vibration resistance.  Additionally, we offer the pumps in two lengths and with a choice of electric or pneumatic motors for maximum flexibility. The kits also come with a conductive 2 m hose featuring swaged and bolted hose connections. The kit also includes an ATEX-safe stainless steel hand nozzle and an earth bonding cable. Therefore, the FP 424 is ideal for handling liquids such acetone, methanol and petroleum derivatives. Ideal for chemical manufacturing, coating production, the petrochemical industry or for solvent dispensing. This kit reliably empties containers in hazardous Zoned areas and maintains full safety compliance.

Part numbers available

The following part numbers are available on our online shop:

• 10-46024010
• 10-46024012
• 10-46024110
• 10-46024112
• 10-41624010
• 10-41624012

• Pump type: Flux FP 424 Ex S-43/38, seal-less

• Outer tube material: Stainless steel 316 L

• Driveshaft: Stainless steel 316 L

• Bearing: Unique Flux PTFE / carbon spiral shaft bearing

• Impeller: ETFE high flow axial impeller

• Immersion lengths: 1000 mm (for 200-200 l drums), 1200 mm (for 1000 l IBCs)

• Outer tube diameter: 43 mm

Motor type:

F 460 Ex, brushed commutator motor, fixed speed

• Power supply: 230V 50 Hz

• Ingress protection: IP55

• Power rating: 460 W

• Duty cycle: S1 continuous duty

• Housing type: Double wall, externally cooled, double insulated

• Housing material: Aluminium with corrosion resistant paint

• Cable length: 5 m

• Plug type: UK 3-pin plug adapter supplied

• Alternative motor options:

• • F 460 Ex EL electric motor with variable speed control

• • F 416 Ex pneumatic motor with trigger operation, 1000 W power output, air consumption 14 l/s @ 6 Bar max.

• Hose: DN21 Universal conductive chemical hose, 2 m length with brass swaged fittings

• Hand nozzle: Brass Ex-approved hand nozzle with PTFE seal

• Compression gland: Conductive polypropylene, G 2” male thread

• Also includes: 2 m earth wire and Flux clip for hand nozzle stowage

Max flow rate: Approx. 50 L/min¹ (depending on configuration)

Max discharge pressure: Approx. 9 mwc (electric motor) or 13 mwc (air motor)

Maximum liquid temp: 100 degrees C (40 degrees C in ATEX Zoned areas)

Max density:

• Electric motor: Approx. 1.85 kg/L

• Air motor: Approx. 1.5 kg/L

Max viscosity:

• Electric motor: Approx. 1000 mPas

• Electric motor: Approx. 700 mPas

* measured using water at 20°C with hose and hand nozzle connected.
