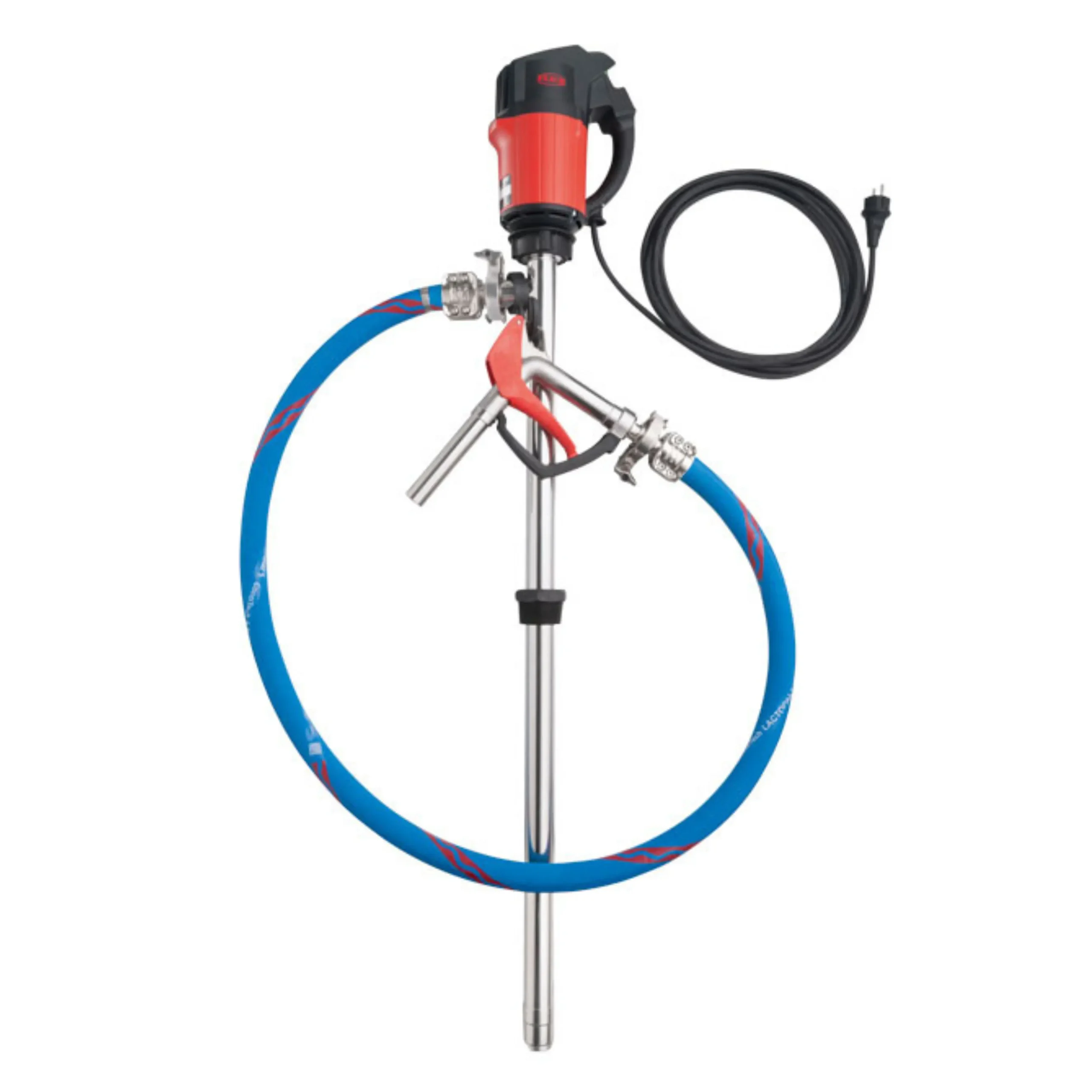

Flux Pumps F 427 S Food Grade Drum Pump Kit – Hygienic Transfer of Food and Pharma products

• Pump type: Flux FP 427 FOOD S-43/38, seal-less

• Outer tube material: Heavy duty FDA CFR21 / EN1935 approved stainless steel 316 (fully polished)

• Driveshaft: Stainless steel with 6 mm diameter for maximum vibration resistance

• Inner tube: Stainless steel

• Impeller: Stainless steel axial impeller

• Immersion length: 1000 mm (for 200-220 l drums) or 1200 mm (for 1000 l IBCs)

• Outer tube diameter: 43 mm

• Motor type: F458, brushless commutator, fixed speed

• Power supply: 230V 50Hz

• Ingress protection: IP55

• Power rating: 460W

• Duty cycle: S1 continuous duty

• Housing type: Double-walled, totally enclosed, externally cooled, double insulated

• Housing material: Aluminium with corrosion resistant paint

• Cable length: 5 m

• Plug type: UK 3-pin mains adaptor included

• Alternative 110V motors and compressed air motors available on request.

• Hose: 2 m length, DN25 food grade, stainless steel tri-clamp swaged fittings

• Hand nozzle: Stainless steel hand nozzle (sanitary grade) with FKM/ PTFE seals

• Compression gland: Conductive polypropylene G2″ male thread

• Max flow rate: Approx. 50 LPM¹

• Max delivery head: Approx. 8 mwc

• Maximum liquid temperature: 100 degrees C

• Max density: 1.5 kg/L

• Max viscosity: Approx. 1000 mPas

• Certifications: FDA CFR 21, EC 1935/2004

* measured using water at 20˚C with hose and hand nozzle connected.

This food grade drum pump kit is engineered to meet the stringent demands of modern food production facilities. Here’s the reasons why this drum pump kit is the perfect choice:

1. Seal-less construction for reduced maintenance

Firstly, with no wetted mechanical seal, maintenance requirements are reduced and the pump can handle dry running (for limited periods). Additionally, this pump is easy to disassemble for cleaning and is ideal for cleanroom and open production areas. Moreover, it’s smooth, polished surfaces eliminate crevices where microbes may grow, ensuring optimal hygiene.

2. PTFE plug-in bearings for class-leading vibration resistance

Five PTFE bearings support the driveshaft over a wide contact area, therefore minimising vibration and shaft deflection. Furthermore, this extends pump life, reduces maintenance and promotes optimal drainage of residual liquid.

3. Reversible 316 stainless steel driveshaft

Additionally, the unique heavy-duty, reversible driveshaft effectively doubles service life. Furthermore, the 6mm diameter increases resistance to torsional and axial stress, thereby maintaining precision alignment over time.

4. Certified safe for food and pharma

This kit is fully compliant with FDA CFR 21 and EC 1935/2004 global hygiene and safety standards. The pump can be used with consumable products, pharmaceutical compounds and cosmetic liquids. Furthermore, this food grade drum pump is suitable for handling pure, non-crystallising, non-abrasive liquids.

5. Full disassembly without tools

Finally, F 427 S is designed for fast and efficient cleaning. The pump can be stripped down in minutes and re-assembled easily. Moreover, all wetted parts are compatible with sterilisation and autoclave cycles.

• Food production: Fruit juices with pulp, syrups, dairy products, sauces

• Pharmaceutical: Sterile solutions, nutrient liquids

• Cosmetics: Creams, lotions and essential oils

• Biotech and labs: Sterile buffer solutions, culture media

• R&D: Hygienic transfer of test media

• Cooking oils

• Milk and yoghurt

• Glucose solution

• Fruit juices

• Chocolate sauces

Not suitable for flammable liquids with flash point below 50°C, or media containing solid or abrasive particles – see model F 430 FOOD.

• Seal-less construction – for reduced maintenance and dry run capability

• Fast disassembly – no tools required, reducing cleaning turnaround

• Certified safe – FDA CFR21 and EC 1935/2004 compliant materials

• Durable – 6 mm high strength driveshaft for superior vibration resistance

• Versatile – handles fluids with viscosity up to 1,000 mPas

• Fully enclosed F458 motor – IP55 ingress protected for long-term performance in washdown environments. Effectively captures carbon dust within the motor housing, therefore reducing contamination risk.

• Sanitary-grade dispense nozzle and hose – for safe, hygienic dispensing

• Highly polished surfaces – free of crevices, easy to clean and additionally sterilise

• Low maintenance – fully serviceable, with all spare parts available to buy individually
