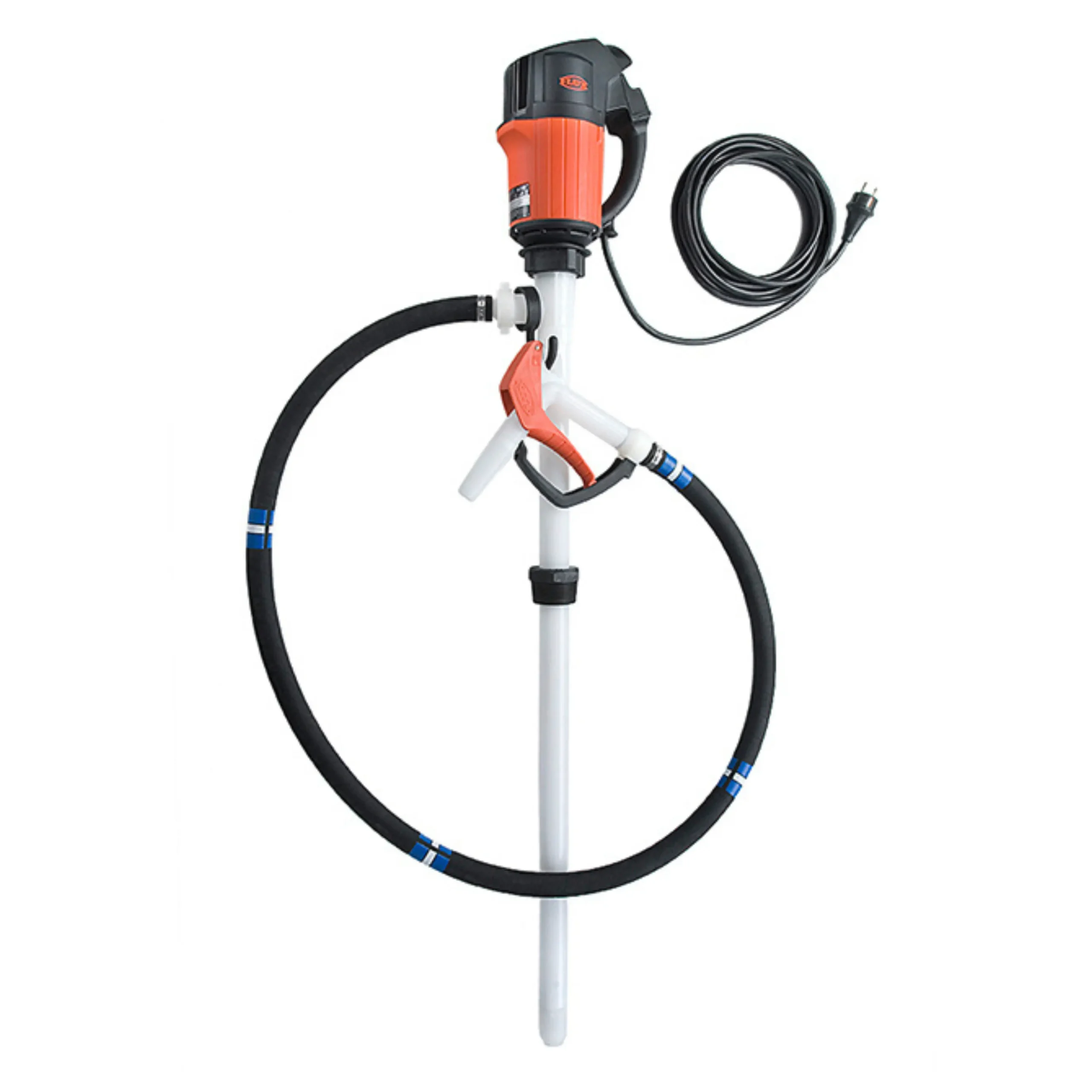

Flux F 430 Kit: Drum Pump for Corrosive Liquids (PVDF)

• Pump type: Flux F 430 PVDF-40/33 with ceramic-oxide mechanical seal

• Outer tube material: Polyvinylidene fluoride (PVDF)

• Driveshaft: Hastelloy C with 6 mm diameter for maximum vibration resistance

• Inner tube: PVDF over-moulded steel core for enhanced structural integrity

• Impeller: ETFE axial impeller

• O-rings: FKM (alternative FFKM o-rings for ultra-aggressive chemicals available on request)

• Immersion length: 1000 mm (for 200-220 litre drums) or 1200 mm ( for 1000-litre IBCs)

• Outer tube diameter: 40 mm

• Motor type: F458, brushed commutator, fixed speed

• Power supply: 230V 50Hz

• Ingress protection: IP55

• Power rating: 460W

• Duty cycle: S1 continuous duty

• Housing type: Double-walled, totally enclosed, externally cooled, double insulated

• Housing material: Aluminium with corrosion resistant paint

• Cable length: 5 m

• Plug type: UK 3-pin mains adaptor included

• Alternative 110V motors and compressed air motors available on request.

• Hose: PE-lined chemical hose, DN19, 2 m length

• Hand nozzle: PVDF with PTFE gaskets and FKM o-rings. Compatible with corrosive and oxidising agents. Alternative FFKM o-rings available on request.

• Compression gland: Polypropylene, G2″ male thread

• Max flow rate: Approx. 40 LPM1

• Max delivery head: Approx. 9.5 metres water column (mwc)

• Maximum liquid temperature: 80 degrees C

• Max density: Approx. 1.5 kg/L

• Max viscosity: Approx. 600 mPas

*measured using water at 20˚C with hose and hand nozzle connected.

The Flux F 430 PVDF kit is engineered for pumping chemically aggressive, high concentration acids in demanding, heavy duty applications. Furthermore, every component in contact with the media is carefully selected for its resistance to chemical degradation, thermal shock and mechanical fatigue.

1. PVDF tubes for maximum chemical resistance

Firstly, polyvinylidene fluoride (PVDF) offers superior resistance to halogens, oxidising agents and concentrated mineral acids. This makes the F 430 an excellent choice for highly concentrated acids such as nitric, sulphuric and hydrofluoric, as well as disinfectants such as sodium hypochlorite and chloric acid. Compared to standard polypropylene plastic pumps, PVDF offers superior chemical resistance and improved service life when handling these corrosive fluids.

2. Mechanically sealed for process integrity

The 6 mm Hastelloy C driveshaft resists corrosion from halogenated and oxidising chemicals, while the ceramic oxide mechanical seal with FKM o-rings effectively seals the inner tube, protecting the bearings from damage. This design prevents leaks, minimises vapour exposure and extends operational life—especially when handling crystallising, abrasive or solids-laden fluids.

3. Thermal and structural stability

The unique Flux steel-cored inner tube provides high strength and thermal stability, for optimal mechanical seal support. With a maximum operating temperature of 80°C and compatibility with liquids densities up to 1.5 kg/L, this pump is suitable for challenging industrial applications where both temperature and chemical attack are concerns.

4. Fully serviceable design

Finally, the Flux F 430 pump is a modular design and basic disassembly can be completed without tools. Consequently, this makes cleaning and inspection simple and cost-effective—ideal for operations requiring frequent media changes or stringent hygiene control.

The Flux F430 drum pump for corrosive liquids is ideal for the following applications:

• Chemical production and blending facilities

• Industrial acid dispensing processes

• Water and wastewater treatment plants

• Surface finishing and electroplating plants

• R&D laboratories handling hazardous media

• Disinfectant and sterilant handling in laboratory environments

• Sulphuric acid – up to 99% concentration

• Hydrofluoric acid – up to 60% concentration

• Nitric acid – up to 80% concentration

• Chloric acid

• Sodium hypochlorite

• Hydrogen peroxide

• Peracetic acid

• Ammonium bifluoride

Additionally, for other chemicals, please consult the Flux chemical resistance guide or speak with our technical team.

• No fluid ingress into inner tube – reduced wetted area reduces risk of cross-contamination and also prolongs bearing life

• Steel-cored inner tube provides ultimate strength and durability

• PE-lined, high-resistance chemical hose for optimal service life

• Totally enclosed, IP55 double-walled drive motor for resistance to corrosive vapours

• Quiet, low-vibration operation with high flow capacity

• Rapid, tool-free maintenance reduces downtime

• Furthermore, premium materials and full spare parts availability ensures longest service life

• Made in Germany

View all Flux Drum Pump Kits
Finally, contact us for chemical compatibility checks or technical advice
