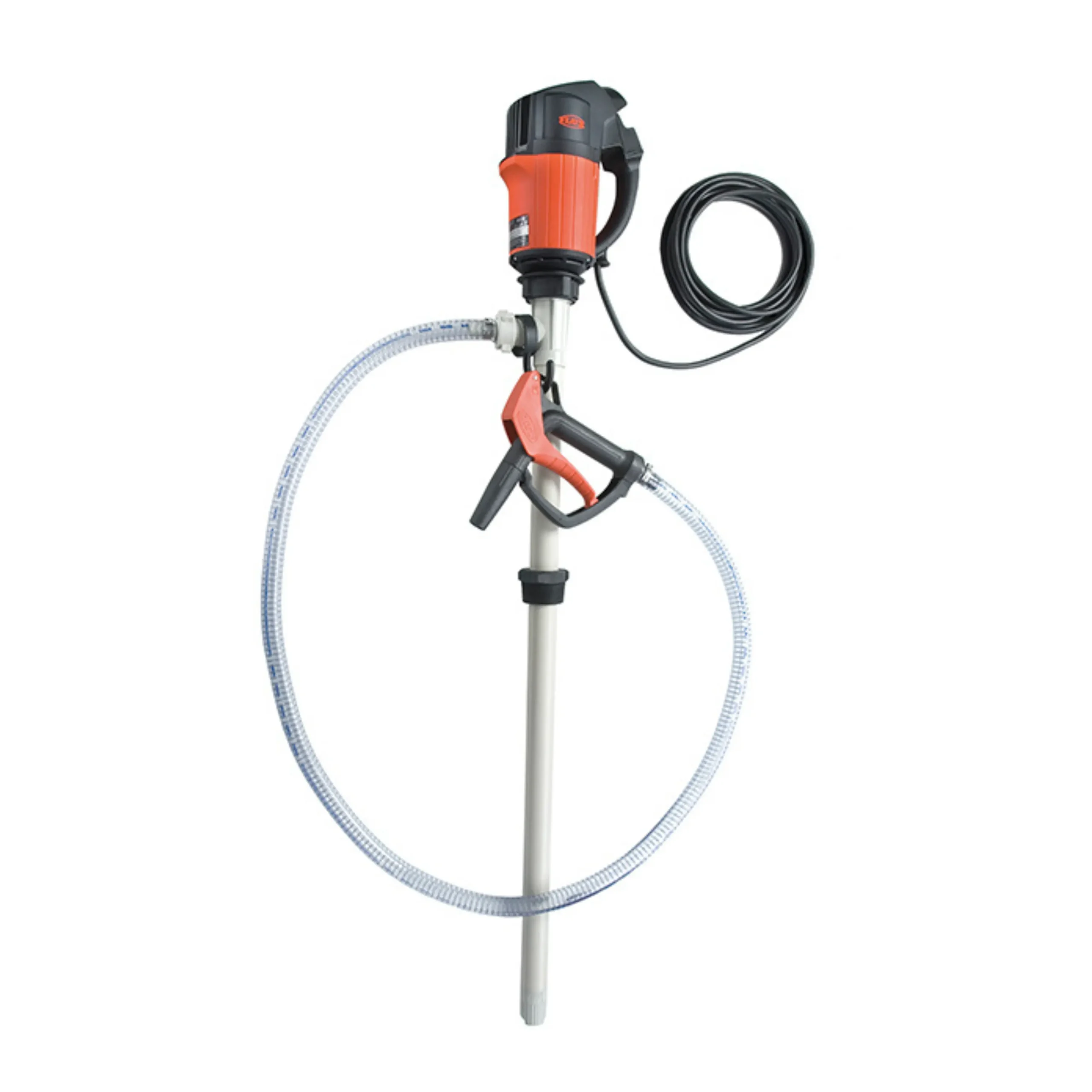

Flux F 430 Drum Pump Kit – Fire Foam / Fire Brigade

The Flux F 430 Drum Pump Kit is a high-performance, one-box solution. It pumps foaming agents, low-concentration acids and additionally alkalis directly from 200-litre drums. This drum pump kit serves fire brigades and emergency response teams. It delivers safe and efficient performance under demanding conditions. Furthermore, this kit uses the high-flow F 430 polypropylene pump with our unique steel-cored inner tube. The Flux “heart of steel” is over-moulded with polypropylene—delivering unbeatable strength, chemical resistance and additionally thermal stability. When coupled with the F 458 24V DC commutator motor with IP 55 ingress protection, a 2 m PVC hose, and a hand nozzle for dispense control, this kit consequently forms a complete system. Finally, it provides a plug-and-pump solution for fire foam handling.

Part numbers available

The following part numbers are available on our online shop:

• 10-45840610

• Pump type: Flux F 430 PP-40/33 with ceramic-oxide mechanical seal

• Outer tube material: Polypropylene (PP)

• Driveshaft: Hastelloy C with 6 mm diameter for maximum vibration resistance

• Inner tube: PP over-moulded steel core for enhanced structural integrity

• Impeller: ETFE axial impeller

• O-rings: FKM

• Immersion length: 1000 mm

• Outer tube diameter: 40 mm

Motor type:

F 458, brushed commutator, fixed speed

• Power supply: 24V DC

• Ingress protection: IP55

• Power rating: 410W

• Duty cycle: S1 continuous duty

• Housing type: Double wall, totally enclosed, externally cooled, double insulated

• Housing material: Aluminium with corrosion resistant paint

• Cable length: 5 m

• Plug Type: N/A

• Alternative 110V motors and compressed air motors also available on request.

• Hose: PVC, DN19, 2 m length

• Hand nozzle: Polypropylene hand nozzle with FKM seals

• Compression gland: Polypropylene G2″ male thread

• Max flow rate:40 LPM¹
• Max discharge pressure:95 Bar
• Maximum liquid temperature: 50 degrees C
• Max density: 1.4 kg/L
• Max viscosity: 500 mPas
• Solids: Suitable for handling solid particles

¹ Measured using water at 20°C with hose and hand nozzle connected.
