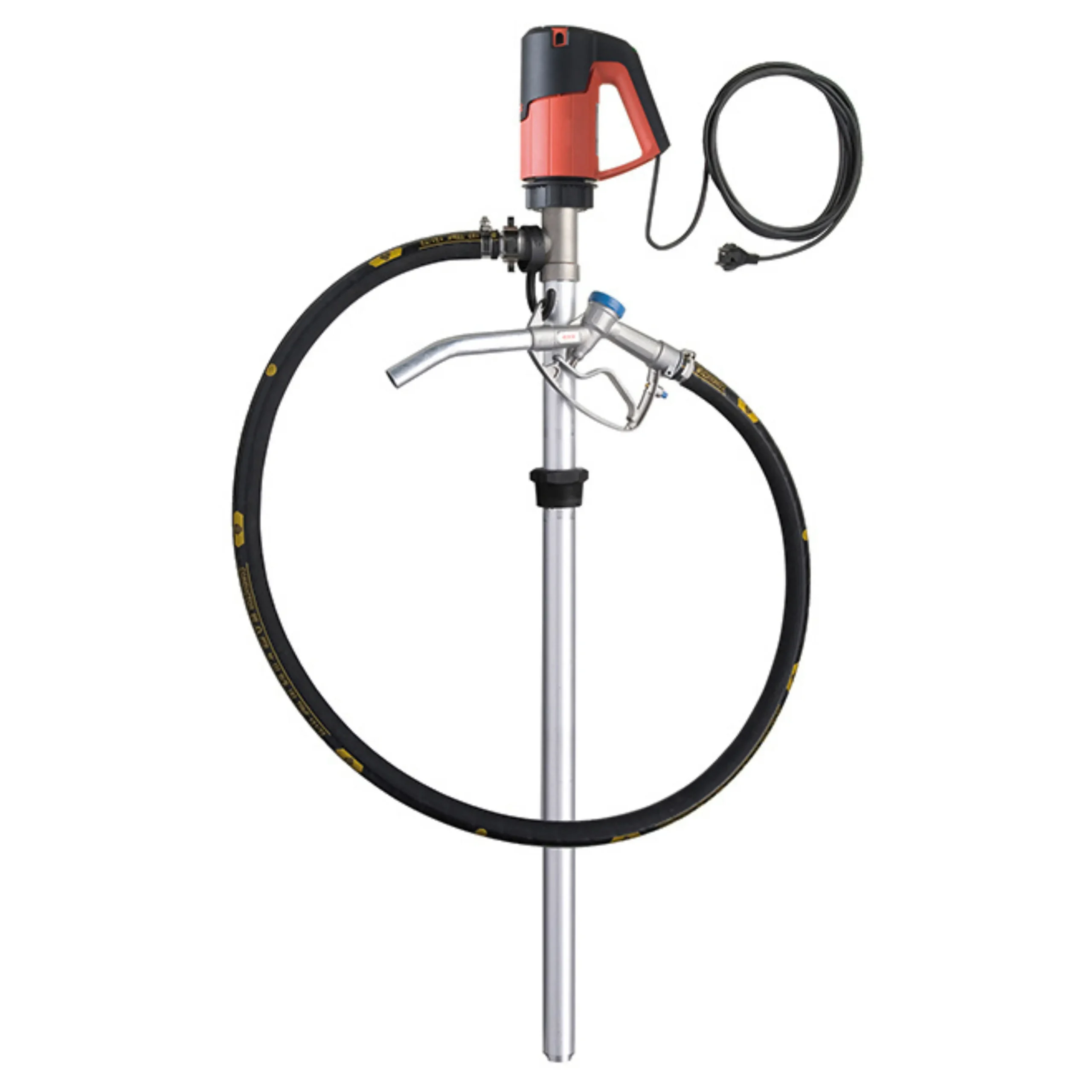

Flux F430 IBC Oil Pump – Heavy-Duty Drum and IBC Transfer for Oils and Diesel

• Pump type: Flux F 430 AL-41/38 with ceramic-oxide mechanical seal

• Outer tube material: Aluminium

• Driveshaft: 6 mm diameter stainless steel for maximum vibration resistance

• Inner tube: Aluminium

• Impeller: ETFE axial (high flow) impeller. Optional semi-axial impeller option available for high pressure or high viscosity applications.

• O-rings: NBR

• Immersion lengths: 1000 mm (200-220 l drum), 1200 mm (1,000 l IBC)

• Outer tube diameter: 41 mm

• Motor type: FEM 4070, brushed commutator, variable speed, or F 457, brushed commutator, fixed speed.

• Power supply: 230V 50Hz

• Ingress protection:  IP24

• Power rating: FEM 4070: 500W, F 457: 800W

• Duty cycle: S1 continuous duty

• Housing type: Single-wall, internally cooled, double insulated

• Housing material: FEM 4070: Polyamide, F 457: Polypropylene

• Cable length: 5 m

• Plug Type: UK 3-pin plug adaptor included

• Alternative 110V motors and compressed air motors available on request.

• Hose: DN25 petroleum hose, 2 m length with two hose clips

• Hose connection: Aluminium

• Hand nozzle: Aluminium with NBR seal

• Compression gland: Polypropylene conductive, G2” male thread

• Also includes: Flux clip for hand nozzle stowage

Max flow rate:

• FEM 4070: Approx. 65 LPM1

• F 457: Approx. 80 LPM1

Max delivery head:

• FEM 4070: Approx. 9.5 mwc

• F 457: Approx. 12 mwc

Maximum liquid temperature: 80 degrees C

Max density:

• FEM 4070: Approx. 1.5 kg/L

• F 457: Approx. 1.9 kg/L

Max viscosity:

• FEM 4070: Approx. 600 mPas

• F 457: Approx. 1,000 mPas

1 measured using water at 20°C with hose and hand nozzle connected.

Engineered for demanding industrial environments, the Flux F 430 IBC oil pump provides outstanding durability at a great price:

Robust, industrial-grade design
Suitable for continuous running, the Flux F 430 AL is constructed from aluminium and stainless steel, with German quality brass shaft support bearings. There are five bearings in the 1000 mm pump and six in the 1200 mm pump. Consequently, when combined with the 6 mm stainless steel driveshaft, the F 430 AL performs under high mechanical load and tough duty cycles.

High flow, high efficiency
If you need to pump oil or diesel quickly and efficiently, F 430 AL is the ideal choice —even at high discharge pressures. Interchangeable axial and semi-axial impellers provide options for both high flow and high pressure pumping applications.

Service-friendly modular construction
The F 430 top-pull inner tube design allows for swift cleaning and maintenance without tools. Furthermore, the sealed inner tube reduces wetted surface area, reducing the chance of cross-contamination. Therefore, a single pump can be used for several fluids, including those with adhesive or crystallising properties. In addition, this pump is suitable for liquids containing small solid particles.

Flexible power and custom options
Finally, with a choice of 230V single-phase motors and our quick-release pump and hose connections, this pump kit offers maximum flexibility with the potential for future upgrades. Furthermore, 110V motors and compressed air motors are available on request. Flux motors are S1 rated for extended duty cycles and individually tested before sale. In addition, standard motor safety features include low voltage protection, temperature monitoring and overload cut-out.

• Diesel, oil and additive transfer at vehicle fleet depots

• Agricultural equipment servicing

• Industrial machinery lubrication

• Automotive service centres

• Oil and lubricant distribution

• Diesel (up to 40°C)

• Engine oil

• Hydraulic oil

• Machine oil

• Heating oil

• Glycol

• Heavy-duty performance for continuous use

• Fast, efficient transfer of oil or diesel from IBCs and drums

• Easy to clean and service – disassemble without tools

• Suitable for fluids with small particulates or adhesive properties

• Reduces cross-contamination when used with various oils

• ATEX options available on request for hazardous area applications
• In addition, the F 430 is a serviceable design with all parts available to buy as spares.
