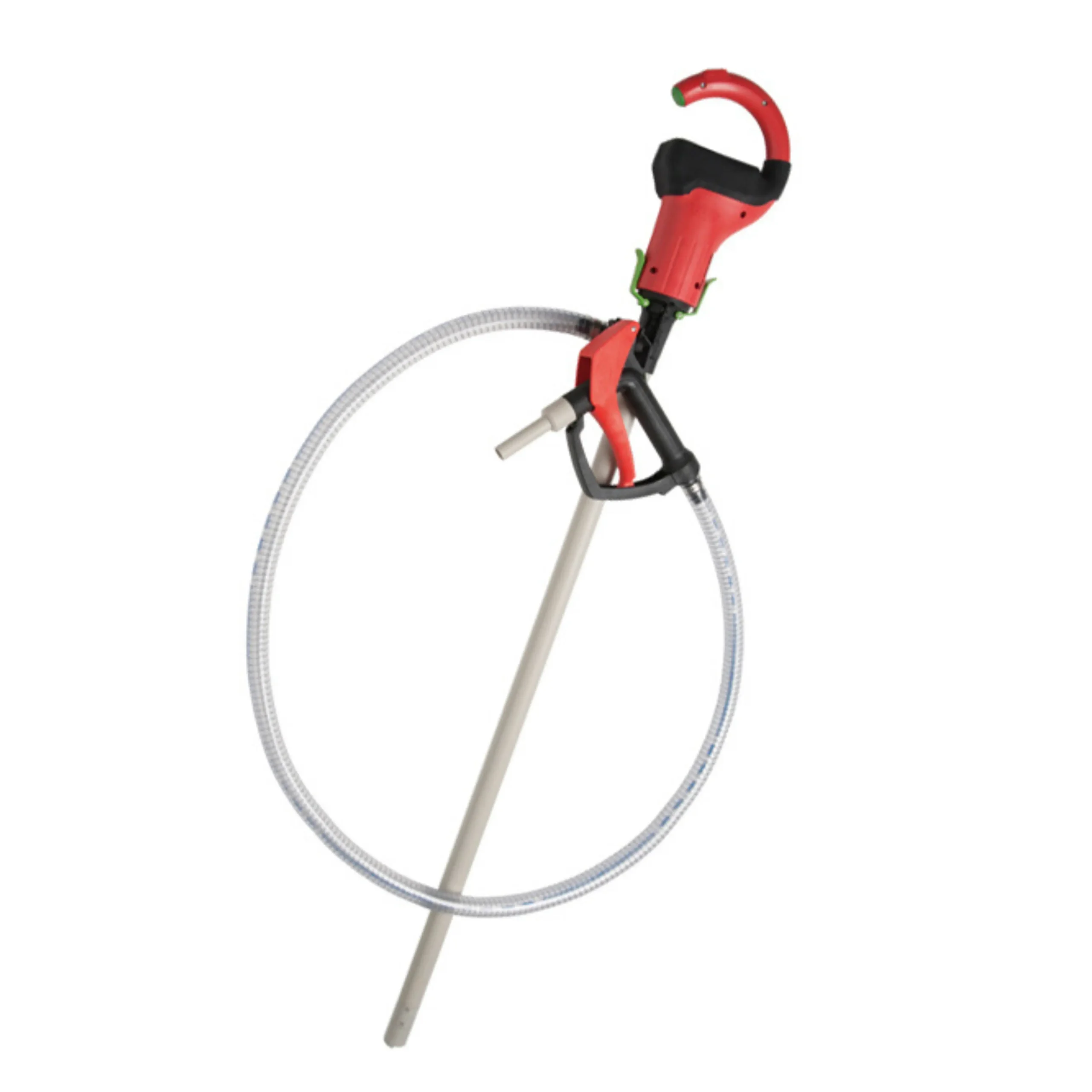

Flux Pumps Combi AdBlue Rechargeable Drum Pump Kit – Portable Solution

• This lightweight kit combines a seal-less polypropylene pump and a high-efficiency, brushless battery motor.
• The CombiFlux pump kit delivers mobility, chemical resistance, and precise flow control.
• Designed for use in remote locations, or when trailing power cables are undesirable- the Combiflux battery pump can be used anywhere.
• Examples include using the pump in workshops, vehicle yards and maintenance depots. The pump is also ideal for waste transfer stations and for mobile chemical dispensing from trucks or vans.
• Furthermore, this is not a throwaway pump. The CombiFlux rechargeable drum pump kit features our double-walled brushless motor with an IP44 fume-resistant enclosure.
• Consequently, this pump kit suits heavy-duty industrial use and performs well under challenging field conditions.
• The slim 32 mm pump tube fits into narrow container openings.
• Additionally, the soft-start, variable-speed motor controls dispensing to prevent splashing.
• The modular design with quick-release motor connection provides ultimate flexibility.
• Furthermore, pump tubes are available in a range of lengths and materials.
• And finally, CombiFlux is backed by Flux's renowned German engineering quality.

• Pump type: CombiFlux F 314 PP/S-32/25, seal-less

• Outer tube material: Polypropylene (PP)

• Driveshaft: Stainless steel 316

• Inner tube: Polypropylene

• Impeller: ETFE axial impeller

• Bearing: Unique Flux PTFE / Carbon spiral shaft support

• Immersion length: 1000 mm (for 200-220 L drums, hobbocks, canisters)

• Outer tube diameter: 32 mm

• Outlet thread: G 1 A

• Motor type: FBM-B3100, brushless battery motor with soft start, stepless speed control from 5000 to 15,000 RPM

• Ingress protection: IP44

• Power rating: 200W

• Duty cycle: S1 continuous duty

• Housing type: Double wall, double insulated- protection class II, overload switch, low current cut-out, electronic temperature control

• Housing material: Polyamide (resistant to steam and corrosive fumes)

• Ambient temperature range: 0 to 40 degrees C

• Weight: 1.2 kg

• Certifications: UKCA, CE, VDE-GS

• Battery model: B15-3100

• Type: Lithium-Ion, 18V, 2.5 Ah

• Battery protection: Overload, deep discharge, overcurrent, short circuit

• Sleep mode: Yes

• Dimensions: 115 x 75 x 46 mm

• Ambient temperature for storage: – 20 to + 60 degrees C

• Weight: 350 g

• Charger model: BCH-3100

• Charging time: 30 minutes

• Voltage: 220-240V, 50-60 Hz

• Temperature loading range: + 5 to 40 degrees C

• Ambient temperature for storage of charger: – 20 to + 60 degrees C

• Insulation class: T40/E

• Cable length: 2 m with 3-pin plug adaptor

• Protection features: Reverse polarity, defective battery detection, electronic temperature control

• Status display: LED indicators

• IP rating: IP30

• Motor connection: 2 x quick-release clamps

• Hose: PVC, DN19, 2 m with polypropylene hose connection and additionally two hose clips

• Hand nozzle: Polypropylene AdBlue-compatible with FKM seal (outlet spout 19 mm)

• Compression gland: Polypropylene DN19

• Max flow rate: Approx. 33 LPM¹

• Max discharge pressure: Approx. 6.5 mwc

• Maximum liquid temperature: 45 degrees C

• Max density: Approx. 1.3 kg/L

• Max viscosity: Approx. 250 mPas

*Measured with water at 20°C with hose and hand nozzle connected.

1. Seal-less architecture for optimal long service life
   Firstly, the CombiFlux pump has no mechanical seal or o-rings in contact with the media. Therefore this seal-less design reduces maintenance requirements and easily handles urea-based fluids and AdBlue®. In addition, the robust pump tube eliminates common failure points resulting from seal wear or ammonia degradation.
2. Spiral shaft bearing delivers enhanced axial stability
   Flux’s unique PTFE/carbon spiral bearing reduces shaft deflection and additionally ensures concentric rotation. This precision design reduces mechanical loads and turbulent flow at higher motor speeds, consequently leading to greater operational lifespan.
3. Brushless variable speed motor – full control at your fingertips
   The FBM-B 3100 motor offers stepless speed adjustment, thereby allowing the user to fine-tune flow from approx. 8-33 LPM. This enhances operator safety and dispensing precision, especially when filling smaller, narrow-necked containers. Furthermore, operators can finely adjust flow rates in real time with the integrated dial. The soft-start function protects mechanical components and additionally reduces wear over long term use.
4. Rechargeable convenience –  Pump up to 1,250 L per charge
   The 18V Li-ion battery delivers impressive performance: up to 1,250 litres of AdBlue® can be transferred on a single charge. In addition, it’s cordless freedom delivers true portability. Consequently, this makes the CombiFlux ideal for outdoor use, for example, at vehicle depots and mobile workshops. Furthermore, the battery can be fully charged from empty in just 30 minutes, using the smart charger included.
5. 32 mm pump – ideal for small container openings
   The lightweight, slim pump tube is designed for insertion into smaller, narrow-necked containers and confined tank openings. However, CombiFlux is also suitable for 200-220 litre drums and even 1000 litre IBC’s, when fitted with a 1200 mm long pump tube.
6. Modular quick-connect system – fast assembly and easy cleaning
   The motor is attached to the pump with quick-release clamps, for rapid assembly or cleaning. Therefore, pumps can be swapped out or replaced, without the use of tools. Furthermore, this design can future-proof your pumping operations – purchase additional pump tubes for different liquids and use one detachable motor to power them. Simply disconnect and reconnect the motor within seconds for cost-effective, contamination-free liquid dispensing from multiple containers. Remember, pump tubes are available in different lengths and materials, thereby covering a range of container sizes.
7. Scientifically proven materials for AdBlue® handling
   Finally, all wetted parts—including the PP pump tube, stainless steel driveshaft, ETFE impeller and FKM hand nozzle seals—have been laboratory tested for compatibility with AdBlue® per ISO 22241. Therefore, long-term resistance to urea, ammonia vapour and hydrolysis is guaranteed, under real-world conditions.

• Transfer of AdBlue®, DEF, urea and light chemicals from 200 L drums, canisters and hobbocks

• Mobile servicing and diesel vehicle maintenance

• Topping up vehicle AdBlue tanks at fleet depots and farmyards

• Transferring brake fluid, coolant or engine oil in test bays

• Remote operations, or areas with no mains power

• AdBlue®

• DEF (Diesel Exhaust Fluid)

• Urea solutions

• Coolant and brake fluid

• Additives

• Fertiliser and liquid feed

• Light alkalis, acids and cleaning agents

• Aqueous salt solutions

*AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA)

• Rechargeable and cordless – therefore no mains power required

• Pump up to 1,250 L per charge

• Tool-free assembly with quick-release clamps

• Narrow pump tube fits tight canister openings and confined spaces

• Lightweight and highly portable

• Ideal for pumping small quantities from cans or 200-220 l drums

• Brushless, low-noise, maintenance-free IP44 motor

• Interchangeable pump tubes in various materials for different fluids

• In addition, spare battery packs available to purchase separately

• Fully serviceable with all spare parts available

• Made in Germany with rigorous quality control
