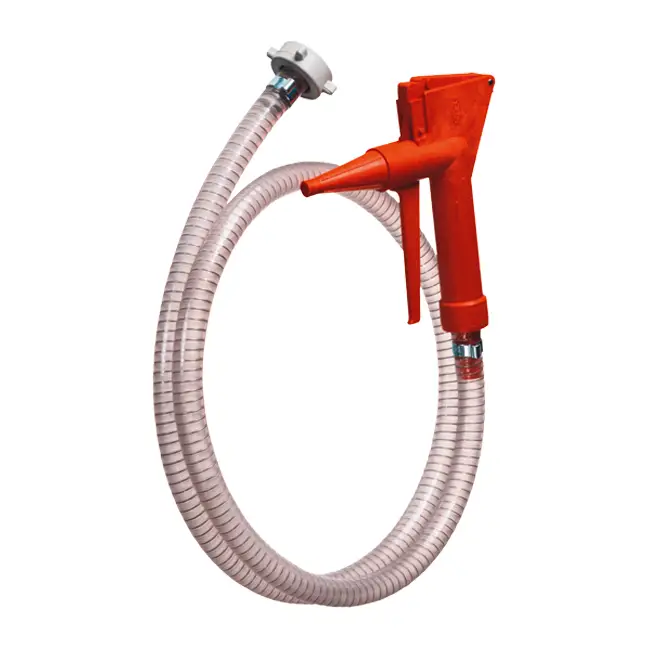

This barrel pump hose kit with hand nozzle is designed for use with our F 300 series Junior and CombiFlux pumps. It is a complete, ready-to-use solution for controlling fluid transfer from drums and containers. Delivered pre-assembled with a 1.5 m DN19 PVC hose, polypropylene / FKM hand nozzle, two stainless steel hose clamps , plus 1” BSP female hose connection for the pump outlet. Furthermore, heavy-duty hand nozzles suitable use with F 400 series pumps are available here. Designed with both operator safety and dispense control in mind, this ergonomic hand nozzle includes a swivel hose connection with internal ball bearings, promoting effortless rotation to reduce load and avoid hose kinking. Additionally, the 19 mm PVC hose is food-grade, plasticiser-free, with a smooth bore to prevent contamination or unwanted residues. The hose has a maximum pressure rating of 5 Bar and incorporates a steel wire helix for additional kink-resistance. Finally, this hose kit is ideal for transferring dilute acids, alkalis, oils, water and additionally food or beverage products. Whether you're working in a laboratory, production facility or water treatment plant, this barrel pump hose kit enhances operational efficiency and protects operators from accidental spills.

Pump hose connection: 1” BSP female

Hose length: 1.5 metres

Internal diameter: DN19

Outer diameter: 27 mm

Material: Food-grade PVC

Hand nozzle material: Polypropylene with FKM seals

Spout diameter: 11 mm

Pressure rating: 4.5 Bar

Accessories included:

2 x Stainless steel hose clamps

Compatible pumps: JuniorFlux and CombiFlux series

This preassembled barrel pump hose kit has been specifically designed for use with Flux JuniorFlux and CombiFlux drum pumps. The hose connection with PE gasket provides a secure interface with the pump outlet, thereby maintaining integrity and reducing the chances of a leak.

The DN19 PVC hose is ideal for a wide range of low-viscosity fluids and delivers consistent flow in low-volume dispensing applications, such as sample collection, laboratory sampling, or controlled canister filling. In addition, the 11 mm diameter spout is designed to be inserted into most common containers.

Although this pump hose kit is suitable for use with many common fluids, please check chemical compatibility charts before purchase.

Absolutely. The ergonomically optimised hand lever allows the operator to start and stop flow with minimal effort, significantly reducing the risk of fatigue, or operational error during extended use. The swivel joint, equipped with internal ball bearings, prevents the hose from kinking or twisting, therefore ensuring a smooth and continuous fluid path under pressure.

The precision-sealing mechanism of the nozzle guarantees excellent shut-off characteristics, even when handling reactive or foaming fluids. Pump discharge flow can be varied infinitely – crucial for splash prevention, accurate dosing and liquid containment.
