Price range: £554.05 through £913.48 Excluding VAT

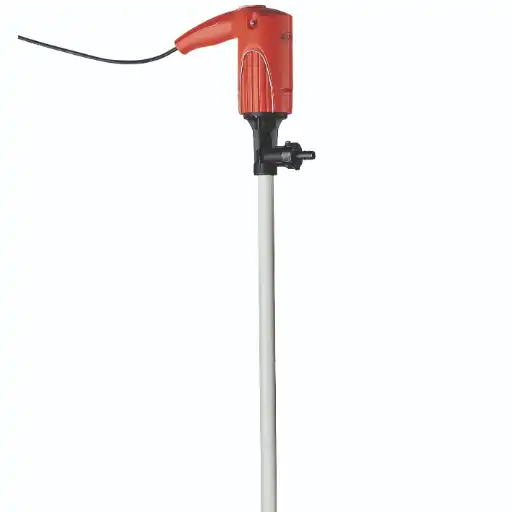

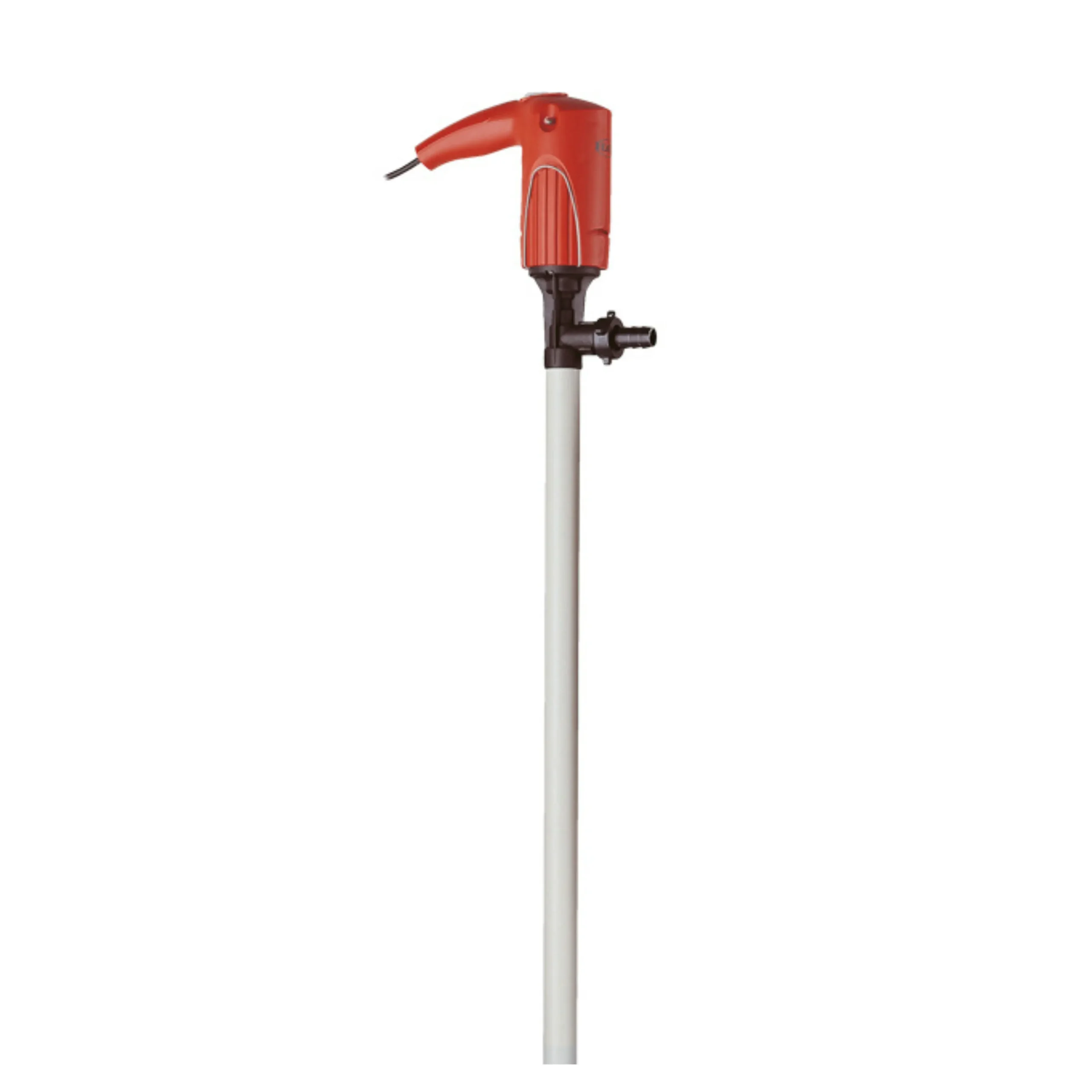

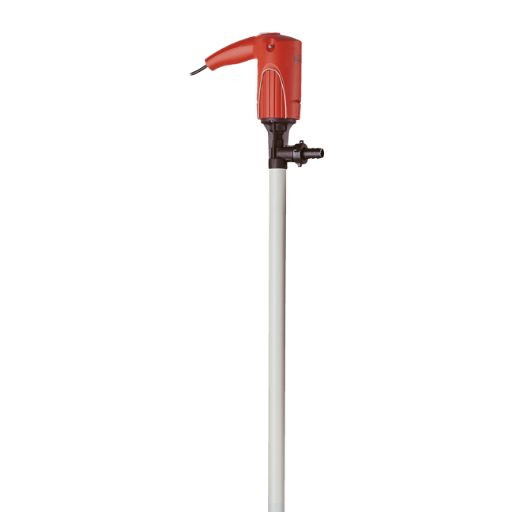

The Juniorflux F 314 sealless 25 litre barrel pump is a highly portable pump, primarily used for emptying smaller containers. It provides plant operatives with a safe, reliable method of transferring a wide range of chemicals.
Category | Details |
|---|---|
| Pump type | F 314 Juniorflux, centrifugal, seal‑less barrel pump |
| Outer tube material | Polypropylene (PP); PVDF; Stainless Steel 316 Ti |
| Driveshaft | Hastelloy C (PP & PVDF pumps); 316 Ti (Stainless steel pumps) |
| Inner tube system | Integrated with unique Flux spiral shaft bearing |
| Impeller | ETFE axial (chemical‑resistant) |
| Bearing material | PTFE / Carbon composite |
| O‑rings | FKM (vapour seal only) |
| Immersion lengths | 500 mm; 700 mm (small containers & hobbocks); 1000 mm (200–220 L barrels/drums) |
| Outer tube diameter | 25 mm; 28 mm; 32 mm* (depending on pump length & material) |
| Outlet connection | G 1 A (PP & PVDF pumps); G 3/4 A (Stainless steel pumps) |
| Motor type | FEM 3070 brushed commutator motor with two‑stage speed control |
| Power supply | 230 V or 110 V (50–60 Hz) |
| Ingress protection | IP 24 |
| Power rating | 230 W |
| Duty cycle | S1 continuous duty |
| Housing type | Single‑walled, internally ventilated, double‑insulated (Class II) |
| Housing material | Polyamide |
| Motor weight | 1.5 kg |
| Max ambient temperature | –20°C to +40°C |
| Cable length | 5 m |
| Plug type | UK 3‑pin adaptor included with 230 V motor |
| Overload protection | Integrated cut‑out |
| Certifications | UKCA; CE; VDE‑GS |
| Total weight (pump + motor) | 1.8 – 3.2 kg |
| Max flow rate | Approx. 40–57 L/min¹ (depending on diameter & material) |
| Max discharge pressure | Approx. 8.5 mwc¹ |
| Maximum liquid temperature | 45°C (PP); 60°C (Stainless steel & PVDF) |
| Max density | Approx. 1.3 g/cm³ (continuous use) |
| Max viscosity | Approx. 250 mPas (continuous use) |
| Dry run limitations | Suitable for limited dry‑running |
| Solids handling | Not recommended for large quantities of solids (use F 310 for solids) |
| Notes | ¹Measured with water at 20°C in open‑flow conditions. Hose connection not included. |
*Check material compatibility before use
**For dispensing smaller volumes only. Subject to use of enclosed, IP 44 double-walled battery motor.
Furthermore, see our list of media examples suitable for the JuniorFlux, here.
Flux F 300 Series pumps are designed for light to medium-duty applications, particularly when portability, precision and ease of use are critical. These pumps are compact, lightweight and therefore ideal for emptying small-volume containers (25–100 litres). However, longer F 300 pumps (up to 1200 mm) are also available for emptying larger barrels and IBC’s.
Furthermore, the centrifugal design efficiently transfers low-viscosity fluids up to approx. 250 mPas. And with a range of materials to choose from, there is always an F 300 pump available for most common liquid dispensing applications, in safe areas.
In contrast, F 400 Series pumps are larger and stronger, with a range of unique design features making them suitable for heavy-duty operations. In addition, these pumps deliver higher flow rates & discharge pressure, handle more viscous fluids (up to 1,000 mPas depending on configuration), and are compatible with a wider range of drive systems—including air-operated motors, brushless electric motors and ATEX-certified models.
Custom immersion depths (up to 3,000 mm) are available to order. Moreover, there is a wider range of F 400 pump models available, including food-safe pumps, 99.9% emptying pumps and mixing pumps.
To summarise – F 300 pumps are the preferred option for those needing a simple, cost-effective but robust transfer pump, for intermittent use. These pumps prioritise low weight, minimal maintenance and ease of handling.
While the F 400 Series are serviceable, long-life designs, suitable for heavy-duty, process-critical roles requiring maximum throughput, extended system integration, custom sizing and additional certification.
The Flux JuniorFlux F 314 pump is a centrifugal pump that operates on the axial-flow principle, where a high-speed impeller generates flow within the pump’s central axis, to move the fluid upward through the tube and out via the discharge outlet. The impeller is positioned at the low-level pump inlet and is therefore directly submerged in the liquid. It is connected to an electric drive motor via a strong driveshaft.
What differentiates this pump from alternative designs is its seal-less construction, whereby the liquid flows directly along the drive shaft and through the bearing surfaces. This removes the requirement for a mechanical shaft seal – a benefit in terms of leak resistance and reduced maintenance requirements.
