£2,830.98

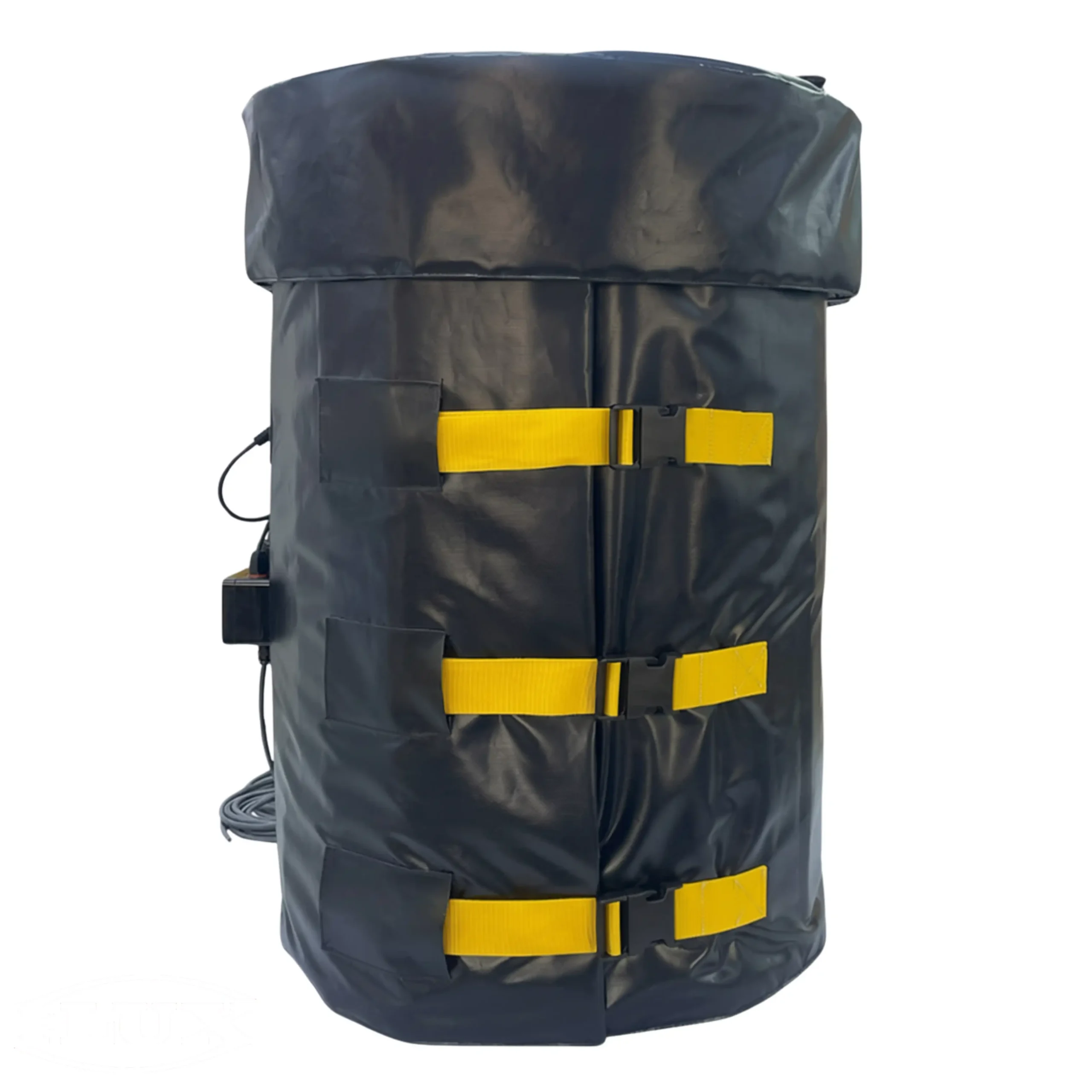

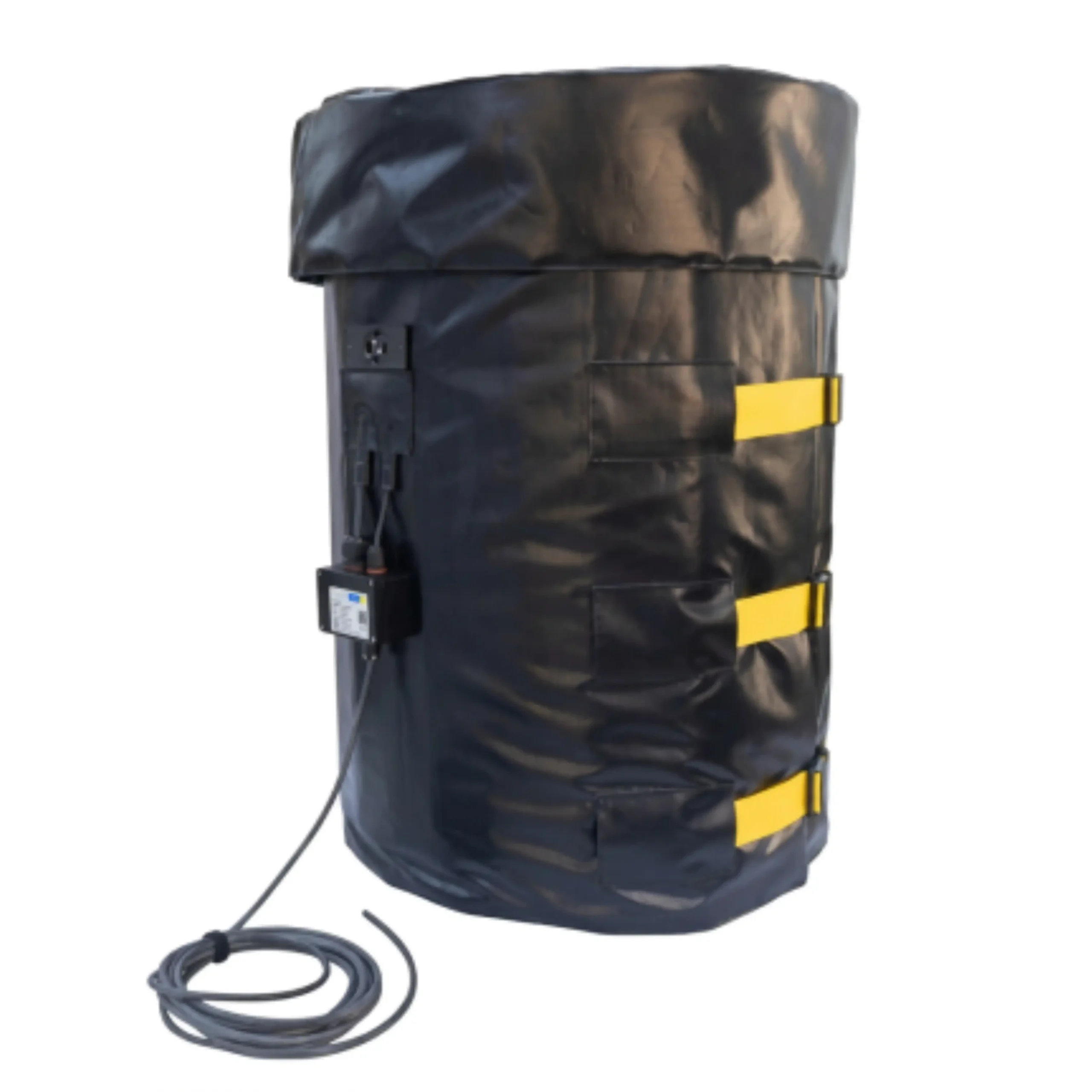

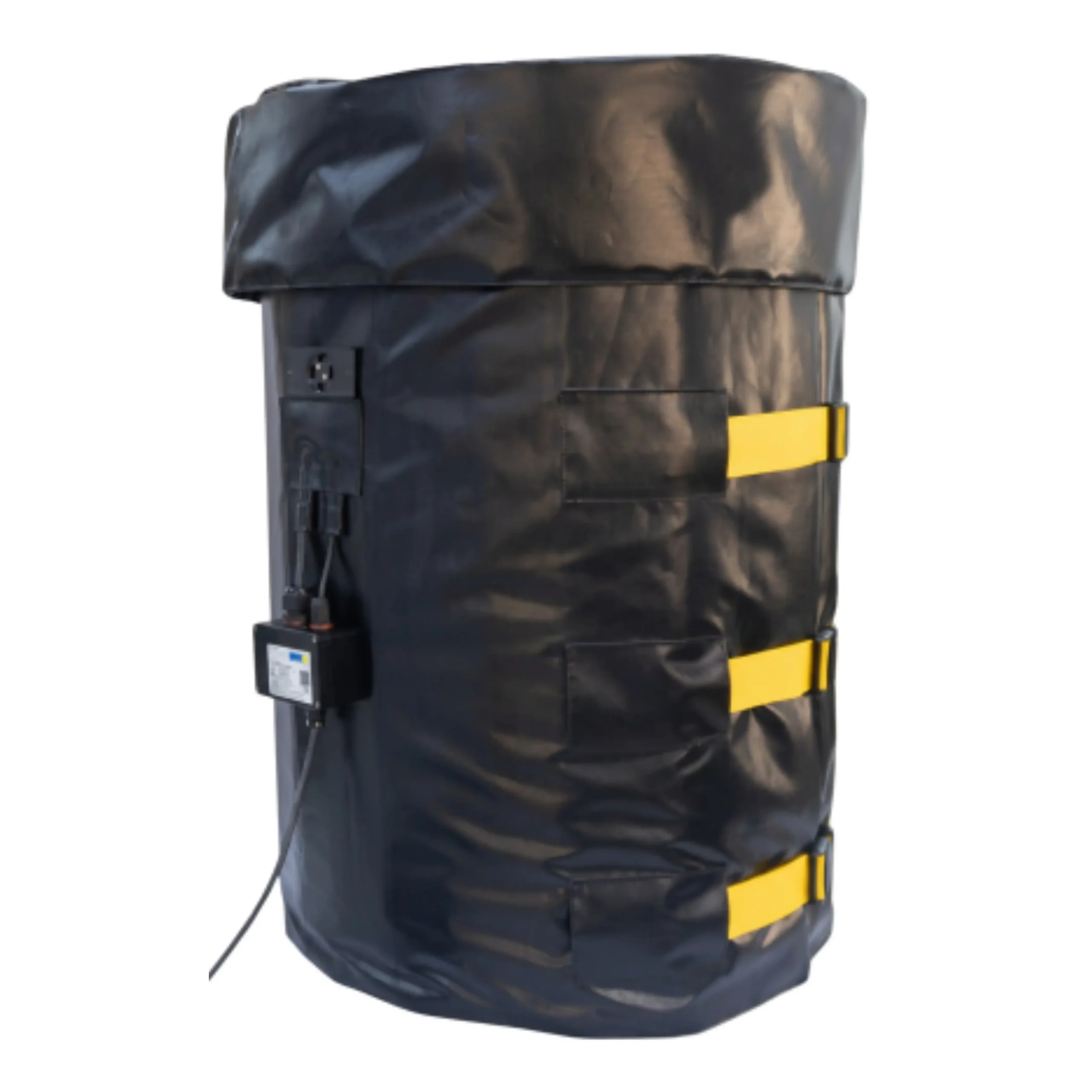

This ATEX approved drum heater provides safe, efficient heating for 200–220 L drums in hazardous industrial environments. It is certified for ATEX zones 1/2 (gas) and 21/22 (dust), ensuring dependable performance where ignition risks must be controlled.
Moreover, this ATEX heating jacket uses a self‑limiting heating cable, allowing it to operate without an expensive controller. As a result, it provides simple, cost-effective and energy‑efficient low temperature heating for frost protection and liquid temperature control.
Constructed with anti‑static, water‑repellent PVC and also equipped with a 5 m ATEX‑certified cable, this heater is engineered for demanding industrial use. Furthemore, it fits standard 205 L drums and can be combined with an optional insulated lid for improved heat retention.
This ATEX heating jacket delivers consistent, safe heating in wide range of ATEX‑rated, hazardous industrial areas.
Specification |
Details |
| Model | ATEX Drum Heater |
| Drum Size | 200 – 220 L |
| Dimensions | 2160 × 800 mm |
| Circumference Range | C. 1800–2100 mm |
| Voltage | 230 V |
| Power | 660 W |
| Heating Technology | Self-limiting heating cable, adjustable to drum size |
| Temperature Range | 65°C (energised) / 85°C (de‑energised) |
| Maximum Operating Temperature | 65°C |
| Warm Up Times | Heats water from 18°C to 36°C in approx. 48 hours (tested with both the ATEX drum heater and optional lid installed) |
| ATEX Certification | CETS 23 ATEX 030 X / 031 U |
| Temperature Classes | T6, T5, T4, T3, T2, T1 |
| Sensors | 2 × Pt100 (Ex‑i, Ex‑e) |
| Protection Class | IP 54 (dust & water resistance) |
| ATEX Zones | 1/2 (gas), 21/22 (dust) |
| Ambient Temperature | –20°C to +55°C |
| Materials | Anti‑static water-repellent PVC, B2 flame retardant |
| Cable | 5 m, 3G1.5 mm² |
| Fastening System | Secure retaining straps for safe, practical fitting around the drum |
| Junction Box | ATEX-certified connection box designed for durability and also easier cable servicing |
| Weight | 14 kg |
| Recommended Accessories | Insulated lid (21-24‑4654) |
This drum heater UK supports temperature‑critical liquid dispensing in hazardous areas where explosive air-gas, or air-dust mixtures may be present and safe heating is essential.
Ideal for:
It also integrates effectively with drum heaters, insulated lids and other drum insulation systems.
No. This model uses a self‑limiting heating cable, so it does not connect to a controller.
Yes. IP 54 protection rating allows safe use in outdoor environments.

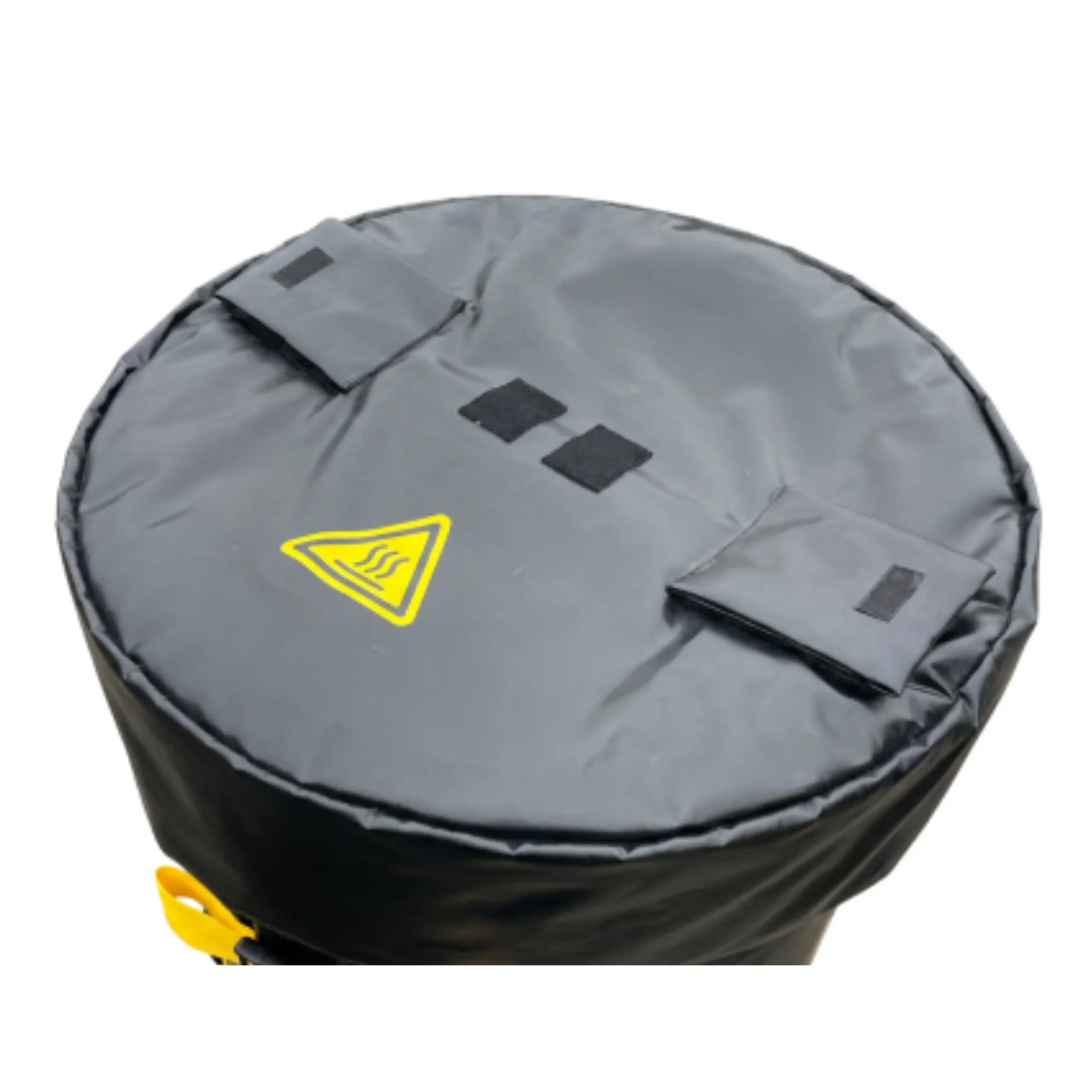

Yes. You can order an optional conductive lid. The lid improves heat retention, reduces heating times and also enhances frost protection.
This ATEX compliant drum heater UK is the ideal solution for heating for 200–220 L drums in explosive atmospheres. It can be integrated with Flux Ex barrel pumps, as used in chemical, pharmaceutical and oil and gas manufacturing applications.
Please contact us for technical guidance, to find out more about drum heaters UK, or to explore how Flux pumps can support your hazardous‑area liquid processing requirements.
