Portable drum pump

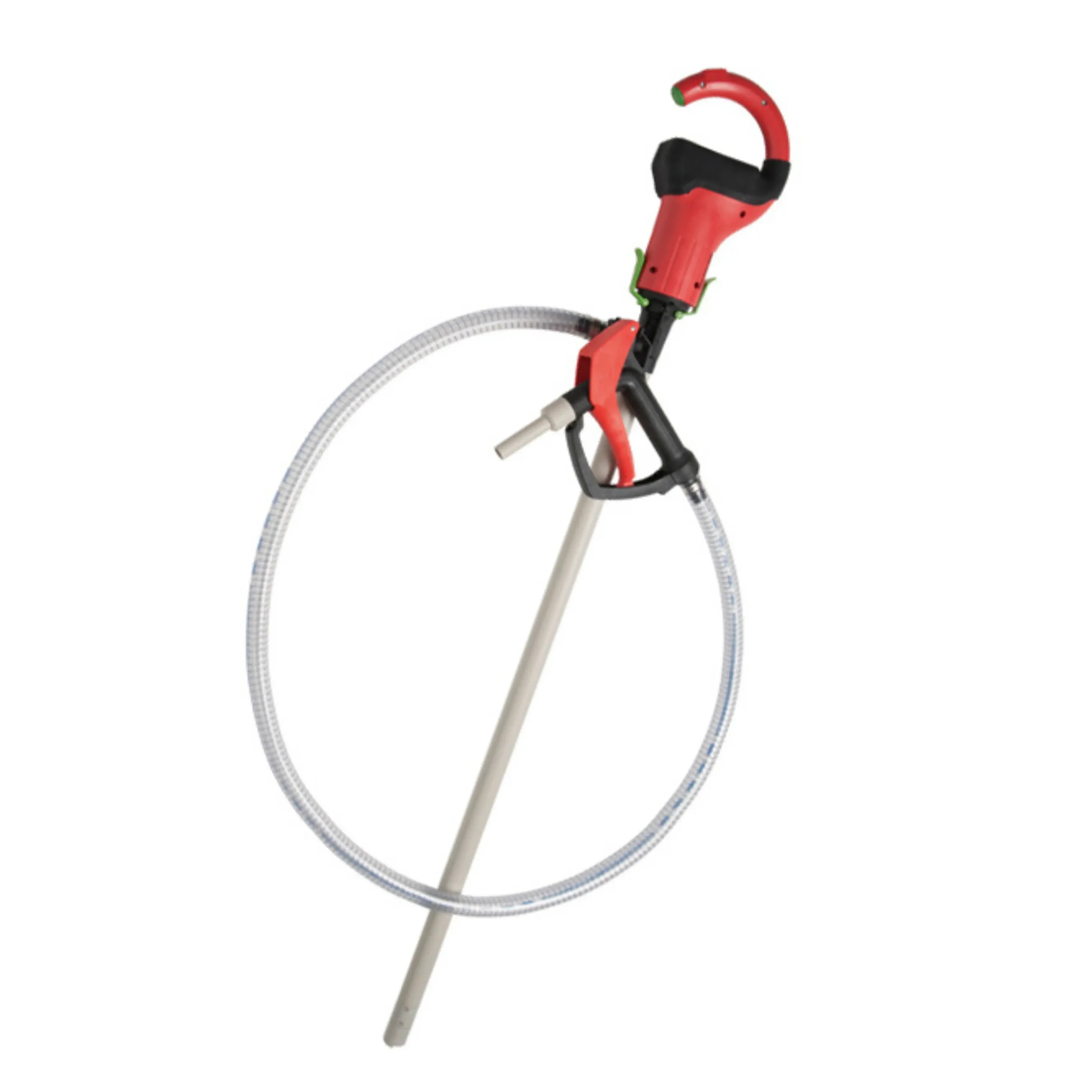

Flux Pumps Portable Drum Pump Kit with Detachable Battery Motor

£1,002.37

The CombiFlux Barrel Pump Kit is the ideal portable drum pump for applications where mains power isn't available. Or, alternatively, when trailing leads are undesirable. Furthermore, this pump kit has a detachable, maintenance-free battery motor and a high-performance polypropylene pump tube. Therefore, this kit makes light work of transferring low-viscosity fluids from a range of container types – including narrow-necked drums, bunded areas and awkwardly placed tanks.  Designed and manufactured in Germany, the CombiFlux is perfect for users who need a lightweight, compact cordless pumping solution for industrial applications. Whether you’re working in a laboratory, manufacturing plant, or field environment, this battery-powered pump delivers reliable and efficient liquid handling wherever you need it.  This portable drum pump kit includes everything you need to get pumping:
  • Polypropylene seal-less pump compatible with a range of common chemicals
  • Powerful, brushless battery motor with stepless speed control
  • Fast-charger with 2.5 Ah lithium-ion battery
  • DN19 PVC discharge hose (1.5 m)
  • Polypropylene hand nozzle with FKM seal
The quick-release design allows easy removal and reconnection on the motor. This handy feature makes it simple to operate multiple pumps with a single motor.

Part numbers available

The following part numbers are available on our online shop:
  • 10-31449910
Lead times may vary, subject to prior orders. If next day delivery is required, please contact us to discuss availability before placing your order.

  • Pump type: FP 314 PP-32/25, seal-less
  • Outer tube material: Polypropylene (PP)
  • Driveshaft: Hastelloy C
  • Bearing: Unique Flux PTFE / carbon spiral bearing
  • Impeller: ETFE impeller
  • Immersion length: 1000 mm
  • Outer tube diameter: 32 mm
  • Outlet thread: G 1 A

Motor type:

FBM-B3100, brushless battery motor with soft start, stepless speed control from 5000 to 15,000 RPM

  • Ingress protection: IP44
  • Power rating: 200 W
  • Duty cycle: S1 continuous duty
  • Housing type: Double wall, double insulated- protection class II, overload switch, low current cut-off, electronic temperature control
  • Housing material: Polyamide (resistant to steam and corrosive fumes)
  • Ambient temperature range: 0 to 40 degrees C
  • Weight: 1.2 kg
  • Certifications: UKCA, CE, VDE-GS

  • Battery model: B15-3100
  • Type: Lithium-Ion, 18V, 2.5 Ah
  • Battery protection: Overload, deep discharge, overcurrent, short circuit
  • Sleep mode: Yes
  • Dimensions: 115 x 75 x 46 mm
  • Ambient temperature for storage: – 20 to + 60 degrees C
  • Weight: 350 g

  • Charger model: BCH-3100
  • Charging time: 30 minutes
  • Voltage: 220-240V, 50-60 Hz
  • Temperature loading range: + 5 to 40 degrees C
  • Ambient temperature for storage of charger: – 20 to + 60 degrees C
  • Insulation class: T40/E
  • Cable length: 2 m with 3-pin plug adaptor
  • Protection features: Reverse polarity, defective battery detection, electronic temperature control
  • Status display: LED indicators
  • IP rating: IP30
  • Motor connection: 2 x quick-release clamps

  • Hose: DN19 PVC, 1.5 m length
  • Hose connection: DN19 polypropylene
  • Hand nozzle: Polypropylene with FKM seal and 22 mm nozzle outlet size
  • Quick-release clamps for motor-to-pump connection
  • Hand nozzle holder built into the pump outlet

  • Max flow rate: Approx. 21 L/min1
  • Max delivery head: 5 mwc
  • Maximum liquid temperature: 45°C
  • Max density: 1.3 kg/L
  • Max viscosity: Approx. 250 mPas

*measured using water at 20°C with hose and hand nozzle connected.
